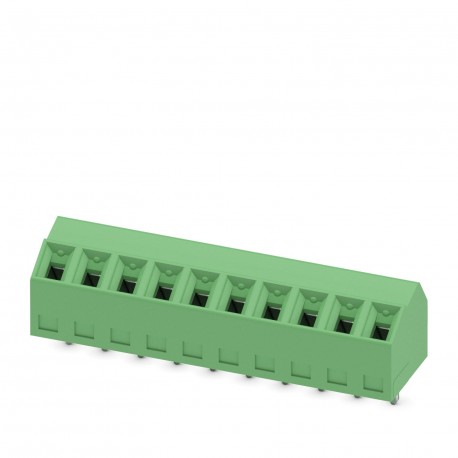

PHOENIX CONTACT SMKDS 1/ 3-3,81 BD: V+,S,G SMKDS 1/ 3-3,81 BD: V+,S,G 1012766 PHOENIX CONTACT Terminal for printed circuit board, pitch: 3,81 mm, numbe.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SMKDS 1/ 3-3,81 BD: V+,S,G 1012766 PHOENIX CONTACT Terminal for printed circuit board, pitch: 3,81 mm, numbe..

SMKDS 1/ 3-3,81 BD: V+,S,G

1012766

PHOENIX CONTACT

250 Pcs.

Terminal for printed circuit board, pitch: 3,81 mm, number of poles: 3, color: green Terminal block for printed circuit board, nominal current: 10 A, dimensioning voltage (III/2): 200 V, nominal cross-section: 1 mm², number of rows: 1, number of poles per row: 3, article family: SMKDS 1, pitch: 3.81 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 35°, color: green, number of solder pins per potential: 1 Printed circuit board terminal, rated current: 10 A, rated voltage (III/2): 200 V, rated cross-section: 1 mm2, number of rows: 1, number of poles per row: 3, item family: SMKDS 1, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, Mounting: Wave soldering, conductor/PCB connection direction: 35°, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5mm, number of solder pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypePrinted Circuit Board Terminal
Product FamilySMKDS 1
Product LineCOMBICON Terminals S
Number of poles3
Step3.81 mm
Number of rows1
Pin DesignLinear Pin Arrangement
Number of Solder Pins Per Potential1
Data Maintenance Status
Article Review02
Electrical Properties
Nominal Current IN10 A
Nominal voltage UN200 V
Sizing voltage (III/3)160 V
Dimensioning transient voltage (III/3)2.5 kV
Dimensioning voltage (III/2)200 V
Dimensioning Transient Voltage (III/2)2.5 kV
Nominal voltage (II/2)400 V
Dimensioning transient voltage (II/2)2.5 kV
Connection data
Connection technology
ConstructionTerminal block for card
Nominal Section1 mm²
Connecting Conductors
Connection typeScrew connection with traction capsule
Rigid conductor section0.14 mm² ... 1.5 mm²
Flexible conductor section0.14 mm² ... 1 mm²
AWG Conductor Section26 ... 16
Flexible conductor section with toe cap, without plastic sleeve0.25 mm² ... 0.5 mm²
Flexible conductor section with toe cap, with plastic sleeve0.25 mm² ... 0.5 mm²
2 conductors with the same cross-section, rigid0.14 mm² ... 0.5 mm²
2 conductors with the same cross-section, flexible0.14 mm² ... 0.2 mm²
Peel Length5 mm
Drive shape: screw headLongitudinal groove (L)
Tightening torque0.22 Nm ... 0.25 Nm
assembly
Type of mountingWave soldering
Pin DesignLinear Pin Arrangement
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsGalvanically tinned
Metal surface of the terminal point (top layer)Tin (5 - 7 μm Sn)
Metal surface of the terminal point (interlayer)Nickel (2 - 3 μm Ni)
Metal surface weld area (top layer)Tin (5 - 7 μm Sn)
Metal Surface Welding Area (Middle Layer)Nickel (2 - 3 μm Ni)
Material data - housing
Color (Housing)Green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Notes
A note on the applicationFor the safe connection of conductors, a defined torque must always be maintained. In particular, in two- and three-pole PCB terminals, the individual solder pin cannot control it at every point of contact. The terminal blocks therefore require assistance when connecting the conductors (manual fixing, bracketing in the housing).
Dimensions
Dimension Schemezswbwfibns.jpg
Step3.81 mm
Width [w]11.42 mm
Height [h]13 mm
Length [l]10 mm
Overall Height9.5 mm
Weld Pin Length [P]3.5 mm
Temple Dimensions0.5 x 0.9 mm
Printed circuit board design
Hole diameter1.1 mm
Electrical Testing
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60947-1 (VDE 0660-100):2015-09
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)160 V
Nominal transient voltage (III/3)2.5 kV
minimum value of air insulation distance - non-homogeneous field (III/3)1.5 mm
Minimum creepage line value (III/3)2 mm
Sizing Insulation Voltage (III/2)200 V
Nominal transient voltage (III/2)2.5 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)1.5 mm
Minimum creepage line value (III/2)1.5 mm
Sizing Insulation Voltage (II/2)400 V
Nominal transient voltage (II/2)2.5 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)1.5 mm
Minimum creepage line value (II/2)2 mm
Environmental and life-life conditions
Environmental conditions
Ambient Temperature (Service)-40 °C ... 100 °C (Based on current/derating load capacity curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Packaging Information
Type of packagingBoxed Packaging

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
