View larger
Images are for illustrative purposes only. Please refer to data sheet for details

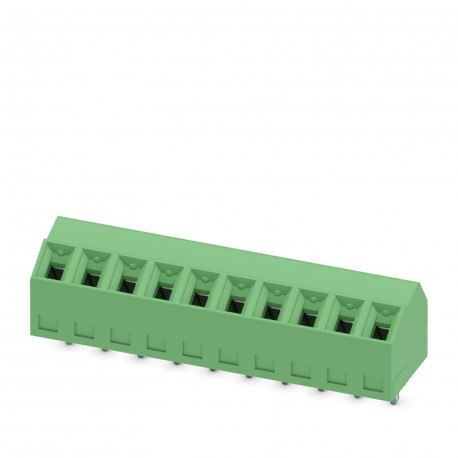

SMKDS 1/ 2-3,81 BD:+- 1012763 PHOENIX CONTACT Terminal for printed circuit board, pitch: 3,81 mm, number of ..
SMKDS 1/ 2-3,81 BD:+-
1012763
PHOENIX CONTACT
250 Pcs.
Terminal for printed circuit board, pitch: 3,81 mm, number of poles: 2, color: green
Terminal block for printed circuit board, nominal current: 10 A, nominal voltage (III/2): 200 V, nominal cross-section: 1 mm², number of rows: 1, number of poles per row: 2, article family: SMKDS 1, pitch: 3.81 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 35°, color: green, number of solder pins per potential: 1
PCB terminal block, rated current: 10 A, dimensioning voltage (III/2): 200 V, nominal cross-section: 1 mm2, number of rows: 1, number of poles per row: 2, product series: SMKDS 1, pitch: 3.81 mm, connection type: Screw connection with cage, screw connection form: L Longitudinal slot, mounting: Wave soldering, Conductor/board connection direction: 35°, Color: Green, Pin Layout: Linear Pinning, Pin Length [P]: 3.5mm, Number of Solder Pins per Potential: 1, Package Type: Packed in the carton
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Article features
| Product Type | PCB terminal block |
| Product Family | SMKDS 1 |
| Product Line | COMBICON Terminals S |
| Number of poles | 2 |
| Step | 3.81 mm |
| Number of rows | 1 |
| Pin Layout | Linear Pinning |
| Number of Welding Pins per Potential | 1 |
| Data maintenance status | |
| Article review | 03 |
Electrical characteristics
| Rated Current IN | 10 A |
| Rated voltage UN | 200 V |
| Sizing voltage (III/3) | 160 V |
| Sizing impulse voltage (III/3) | 2.5 kV |
| Sizing voltage (III/2) | 200 V |
| Sizing Impulse Voltage (III/2) | 2.5 kV |
| Sizing voltage (II/2) | 400 V |
| Sizing Impulse Voltage (II/2) | 2.5 kV |
Connection data
| Connection technology | |
| type | Block of terminal blocks for printed circuit boards |
| Nominal cross-section | 1 mm² |
| Conductor connection | |
| Link | Screw connection with cage |
| Rigid conductor cross-section | 0.14 mm² ... 1.5 mm² |
| Flexible conductor cross-section | 0.14 mm² ... 1 mm² |
| Conductor cross-section AWG | 26 ... 16 |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 0.5 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 0.5 mm² |
| 2 conductors of identical cross-section, rigid | 0.14 mm² ... 0.5 mm² |
| 2 conductors of identical flexible cross-section | 0.14 mm² ... 0.2 mm² |
| Length of the section to be stripped | 5 mm |
| Appliance type screw head | Longitudinal slit (L) |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
Montage
| Mounting type | Wave Soldering |
| Pin Layout | Linear Pinning |
Material information
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Galvanic tin plating |
| Metal Surface, Connection Point (Surface Layer) | Tin (5 - 7 μm Sn) |
| Metal surface connection point (middle layer) | Nickel (2 - 3 μm Ni) |
| Metal Surface Welding Area (Surface Layer) | Tin (5 - 7 μm Sn) |
| Metal Surface Weld Area (Middle Layer) | Nickel (2 - 3 μm Ni) |
| Material information - case | |
| Color (Case) | Green (6021) |
| Insulation material | PA |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Flammability index of GWFI filament according to EN 60695-2-12 | 850 |
| GWIT filament ignition temperature according to EN 60695-2-13 | 775 |
| Brinell hardness test temperature according to EN 60695-10-2 | 125 °C |
Notes
| Note for use | A predefined tightening torque must always be observed for secure connection. Especially in the case of two- and three-pole PCB terminals, the single contact soldering tip may not block them. For this reason, the terminals must be reinforced when connecting (fixed by hand, reinforcement on the housing). |
dimensions
| Dimensioned Drawing |  |
| Step | 3.81 mm |
| Width [w] | 7.61 mm |
| Height [h] | 13 mm |
| Length [l] | 10 mm |
| Installation Height | 9.5 mm |
| Weld Shank Length [P] | 3.5 mm |
| Shank sizes | 0.5 x 0.9 mm |
| Printed circuit board design | |
| Bore diameter | 1.1 mm |
Electrical Controls
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60947-1 (VDE 0660-100):2015-09 |
| Insulation Material Group | The |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 160 V |
| Rated impulse voltage (III/3) | 2.5 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 1.5 mm |
| Minimum creepage value (III/3) | 2 mm |
| Rated Isolation Voltage (III/2) | 200 V |
| Rated impulse voltage (III/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 1.5 mm |
| Minimum creepage value (III/2) | 1.5 mm |
| Rated Isolation Voltage (II/2) | 400 V |
| Rated Impulse Voltage (II/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 1.5 mm |
| Minimum creepage value (II/2) | 2 mm |
Environmental and electrical life conditions
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (Depending on current flow curve/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
Packaging Information
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 13 mm |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 3.81 mm |
| Rated current In (EF008250) | 10 A |
| Rated voltage (EF000228) | 200 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.1 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of banding (EF007011) | Carton (for SMD) |
