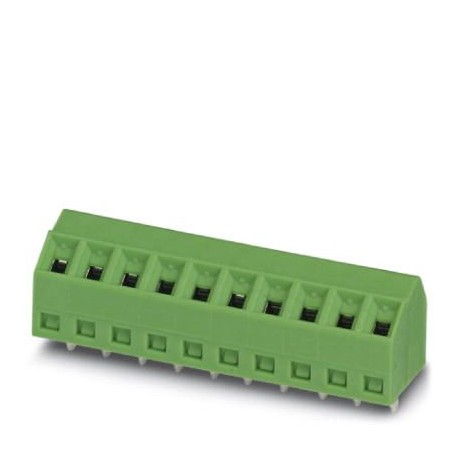

PHOENIX CONTACT SMKDS 1/16-3,5 BD:NZ SMKDS 1/16-3,5 BD:NZ 1700256 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SMKDS 1/16-3,5 BD:NZ 1700256 PHOENIX CONTACT PCB terminal block

SMKDS 1/16-3,5 BD:NZ

1700256

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, rated current: 10 A, rated voltage (III/2): 200 V, rated section: 1 mm², number of potentials: 16, number of rows: 1, number of poles per row: 16, item family: SMKDS 1, pitch: 3.5 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, Conductor/PCB connection direction: 35 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1700256
Packing unit1
GTIN4055626071169
Custom tariff number85369010

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1700256 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 13 mm
Number of electrical connections (EF008252) 16
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 10 A
Rated voltage (EF000228) 200 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.1 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
