View larger
Images are for illustrative purposes only. Please refer to data sheet for details

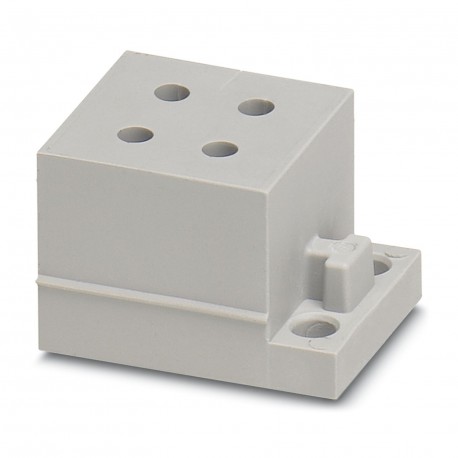

CES-STPG-GY-4X3 0801710 PHOENIX CONTACT Cable sleeve
CES-STPG-GY-4X3
0801710
PHOENIX CONTACT
10 Pcs.
Cable sleeve
Cable grommet, small, number of conductors: 4, type: Round cable, creased, outer diameter of cable: 4x 2 mm ... 3 mm, material: SEBS (halogen-free), color: gray, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Cables > Cable plug sealing clamp
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0801710 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 689 (C-2-2017) |
| GTIN | 4046356675116 |
| Weight per Piece (excluding packing) | 7.940 g |
| Custom tariff number | 85472000 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP54 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C (static) |
General
| No. of conductors | 4 |
|---|---|
| Material | SEBS |
| SEBS (halogen-free) | |
| Flammability rating according to UL 94 | V0 |
| Color | gray |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
