View larger
Images are for illustrative purposes only. Please refer to data sheet for details

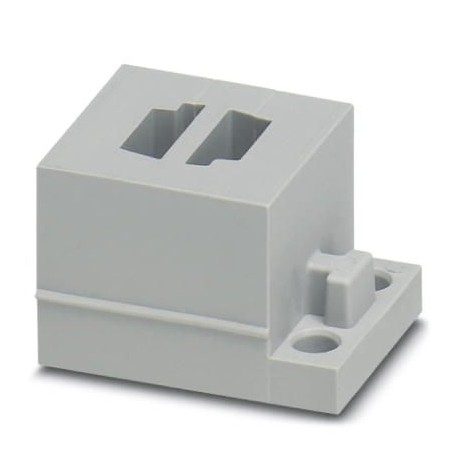

CES-STPG-GY-2ASI-RR 0801713 PHOENIX CONTACT Cable sleeve
CES-STPG-GY-2ASI-RR
0801713
PHOENIX CONTACT
10 Pcs.
Cable sleeve
Cable grommet, small, number of conductors: 2, type: AS-i cable (Right Right), creased, material: SEBS (halogen-free), color: gray, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Cables > Cable plug sealing clamp
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0801713 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 689 (C-2-2017) |
| GTIN | 4046356675147 |
| Weight per Piece (excluding packing) | 7.150 g |
| Custom tariff number | 85472000 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP54 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C (static) |
General
| Product description | Slotted sleeves for accommodating two pre-assembled AS-i cables (LR), can be used in CES sealing frames. When fitted, the sleeves also ensure strain relief according to DIN EN 50262. |
|---|---|
| No. of conductors | 2 |
| Material | SEBS |
| SEBS (halogen-free) | |
| Flammability rating according to UL 94 | V0 |
| Color | gray |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
