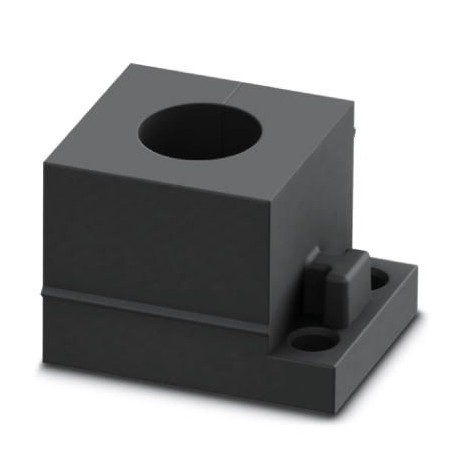

CES-SRG-BK-8 0801625 PHOENIX CONTACT Small, slotted cable sleeves suitable for cables with a diameter of 7 ...
CES-SRG-BK-8
0801625
PHOENIX CONTACT
10 Pcs.
Small, slotted cable sleeves suitable for cables with a diameter of 7 ... 8 mm, material: NBR
Cable grommet, small, number of conductors: 1, type: Round cable, split, outer diameter of cable: 1x 7 mm ... 8 mm, material: NBR, color: black, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Cables > Cable plug sealing clamp
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product description
Slotted sleeves for accommodating pre-assembled cables and lines with a diameter of 7 ... 8 mm, can be used in CES sealing frames. When fitted, the sleeves also ensure strain relief according to DIN EN 50262.
Dimensions
| External cable diameter | 1x 7 mm ... 8 mm |
|---|---|
| Length | 29.5 mm |
| Width | 19.5 mm |
| Height | 17 mm |
Ambient conditions
| Degree of protection | IP54 (for sealing frames with screw locking. IP44 sealing frames with locking latch.) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C (static) |
General
| Product description | Slotted sleeves for accommodating pre-assembled cables and lines with a diameter of 7 ... 8 mm, can be used in CES sealing frames. When fitted, the sleeves also ensure strain relief according to DIN EN 50262. |
|---|---|
| No. of conductors | 1 |
| Material | NBR |
| Color | black |
