View larger
Images are for illustrative purposes only. Please refer to data sheet for details

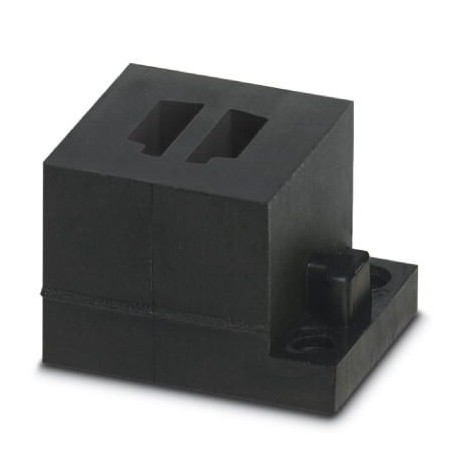

CES-SRG-BK-2ASI-LR 0801669 PHOENIX CONTACT Cable sleeve
CES-SRG-BK-2ASI-LR
0801669
PHOENIX CONTACT
10 Pcs.
Cable sleeve
Cable grommet, small, number of conductors: 2, type: AS-i Cable (Left Right), split, material: NBR, color: black, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Cables > Cable plug sealing clamp
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0801669 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 687 (C-2-2017) |
| GTIN | 4046356674751 |
| Weight per Piece (excluding packing) | 7.780 g |
| Custom tariff number | 40169300 |
| Country of origin | TW (Taiwan) |
Ambient conditions
| Degree of protection | IP54 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C (static) |
General
| Product description | Slotted sleeves for accommodating two pre-assembled AS-i cables (LL), can be used in CES sealing frames. When fitted, the sleeves also ensure strain relief according to DIN EN 50262. |
|---|---|
| No. of conductors | 2 |
| Material | NBR |
| NBR | |
| Color | black |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
