View larger
Images are for illustrative purposes only. Please refer to data sheet for details

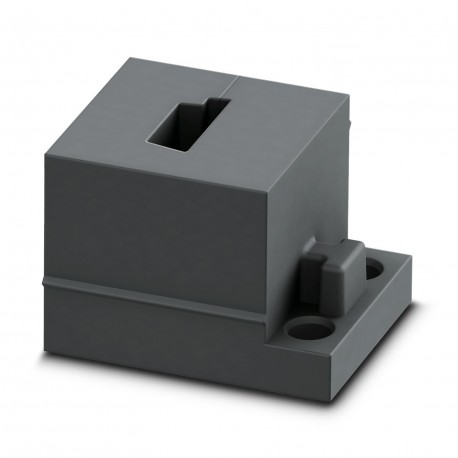

CES-SRG-BK-1ASI-R 0801667 PHOENIX CONTACT Cable sleeve
CES-SRG-BK-1ASI-R
0801667
PHOENIX CONTACT
10 Pcs.
Cable sleeve
Cable grommet, small, number of conductors: 1, type: AS-i cable (Right), split, material: NBR, color: black, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Cables > Cable plug sealing clamp
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable sleeve |
| No. of conductors | 1 |
| Data management status | |
| Article revision | 02 |
Dimensions
| Dimensional drawing |  |
| Width | 19.5 mm |
| Height | 17 mm |
| Length | 29.5 mm |
Material specifications
| Material | NBR |
Characteristics
| Conductor sealing range | AS-i cable |
| Seal size | small |
| Design, Format | AS-i cable |
| Design, Cable seal | slotted |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | -40 °C ... 125 °C (static) |
