View larger
Images are for illustrative purposes only. Please refer to data sheet for details

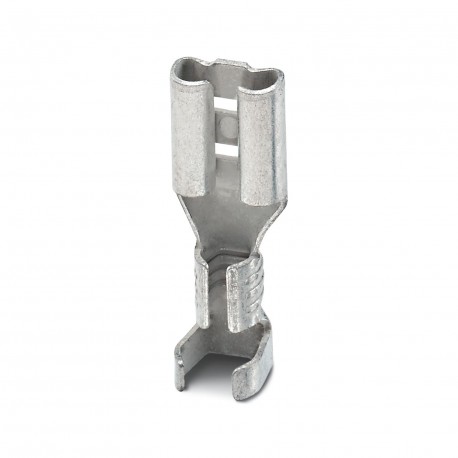

C-SCF 2,5/4,8X0,5 3240157 PHOENIX CONTACT Connector
C-SCF 2,5/4,8X0,5
3240157
PHOENIX CONTACT
100 Pcs.
Connector
Flat plug female, uninsulated, 1.5 ... 2.5 mm², 4.8 x 0.5
Slip-on sleeve, non-insulated, 1.5 ... 2.5 mm2, 4.8 x 0.5
Automation > Crimp splices for copper conductor
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Connector |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Width | 4.8 mm |
| Sleeve length | 16 mm |
| Maximum stripping length | 8 mm |
| Min. material thickness | 0.4 mm |
Material specifications
| Color | silver-colored |
| Material | Brass |
| Coating | tin-plated |
| Insulating material | nicht zutreffend |
| Components | halogen-free |
Mechanical properties
| Technical data | |
| Sleeve length | 16 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | 110 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal cross section (EF005124) | 1.5 mm² |
| Sleeve form (EF007866) | Short |
| Suitable for solid conductors (EF007816) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Suitable for fine strand conductors (EF007804) | Yes |
| Suitable for high temperatures (to 650 °C) (EF007812) | No |
| Suitable for insulated varnish (EF007815) | No |
| Suitable for round conductors (EF007820) | No |
| Suitable for flat conductors (EF007805) | No |
| Material (EF002169) | Other |
| Insulation (EF000155) | Other |
| Number of branches (EF002511) | 1 |
| For pull protected connections (EF001343) | Yes |
| Oil stop/centre bar (EF001342) | No |
