View larger
Images are for illustrative purposes only. Please refer to data sheet for details

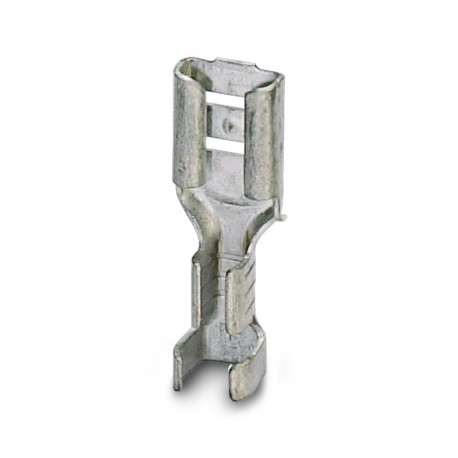

C-SCF 1,5/4,8X0,8 3240155 PHOENIX CONTACT Connector
C-SCF 1,5/4,8X0,8
3240155
PHOENIX CONTACT
100 Pcs.
Connector
Flat plug female, uninsulated, 0.75 ... 1.5 mm², 4.8 x 0.8
Clips, non-insulated, 0.75 ... 1.5 mm2, 4.8 x 0.8
Automation > Crimp splices for copper conductor
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240155 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 498 (C-3-2017) |
| GTIN | 4046356453721 |
| Weight per Piece (excluding packing) | 0.420 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Color | silver |
|---|---|
| Stripping length | 7 mm |
| Components | halogen-free |
| Material | Brass |
| Insulating material | nicht zutreffend |
| Coating | tin-plated |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060701eCl@ss 4.127060701eCl@ss 5.027400201eCl@ss 5.127400200eCl@ss 6.027400200eCl@ss 7.027400204eCl@ss 8.027400204eCl@ss 9.027400212
| Feature Name | Feature Value |
|---|---|
| Nominal cross section (EF005124) | 0.5 mm² |
| Sleeve form (EF007866) | Short |
| Suitable for solid conductors (EF007816) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Suitable for fine strand conductors (EF007804) | Yes |
| Suitable for high temperatures (to 650 °C) (EF007812) | No |
| Suitable for insulated varnish (EF007815) | No |
| Suitable for round conductors (EF007820) | No |
| Suitable for flat conductors (EF007805) | No |
| Material (EF002169) | Other |
| Insulation (EF000155) | Other |
| Number of branches (EF002511) | 1 |
| For pull protected connections (EF001343) | Yes |
| Oil stop/centre bar (EF001342) | No |
