View larger
Images are for illustrative purposes only. Please refer to data sheet for details

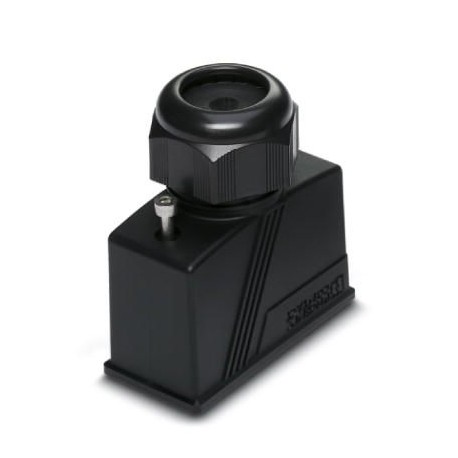

VC-K-T3-IN (13-25) 1424368 PHOENIX CONTACT Sleeve housing
VC-K-T3-IN (13-25)
1424368
PHOENIX CONTACT
1 Pcs.
Sleeve housing
Aerial housing, Product family: VARIOCON, construction: VC3, housing material: Polyamide, color: black, minimum cable diameter: 13 mm, maximum cable diameter: 25 mm. In the use of fibre optic conductors, the bending radii of the cable manufacturer must be considered.
Connectors > Housing for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1424368 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 35 (C-2-2013) |
| GTIN | 4046356772945 |
| Weight per Piece (excluding packing) | 104.500 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Note | When using fiber optics, the bending radii of the cable manufacturers must be observed. |
|---|---|
| Type | VC3 |
| Degree of protection | IP65 |
| Flammability rating according to UL 94 | V0 |
| Locking type | Screw locking, Allen screw |
| Fixing screws | M4 (3 mm Allen screw) |
| Tightening torque, mounting screw | 1.5 Nm ±0.3 Nm |
| Type of the screw connection | Pg29 |
| Cable outlet | straight |
| Housing material | PBT |
| Seal material | NBR |
| Ambient temperature (operation) | -40 °C ... 80 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027371205eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 41.2 mm |
| Height (EF000040) | 97 mm |
| Depth (EF000049) | 96.5 mm |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | None |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | PG |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Number of conduit inlets (EF000437) | 1 |
| Type of locking (EF000208) | Screw |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
