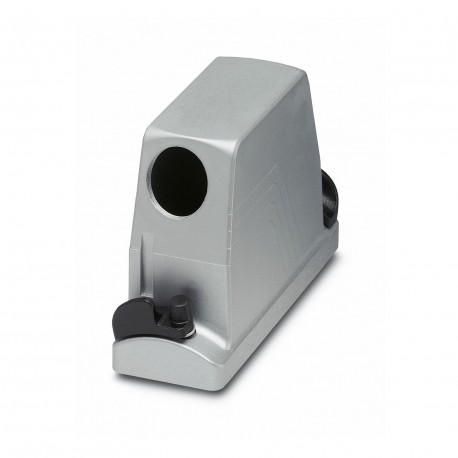

HC-B 24-TMB-100/O1STM32S-EMV 1604544 PHOENIX CONTACT EMC housing
HC-B 24-TMB-100/O1STM32S-EMV
1604544
PHOENIX CONTACT
10 Pcs.
EMC housing
HEAVYCON ADVANCE EMV B24 aerial housing, with bayonet lock, height 100 mm, with thread 1 x M32, side cable outlet
HEAVYCON ADVANCE EMV sleeve housing B24, with bayonet locking, height 100 mm, with 1xM32 thread, lateral cable outlet
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | for contact inserts HC-B24, BB46, D64, DD108, HV10/16, M |
Product properties
| Product type | Housing with bayonet locking |
| Housing type | Sleeve housing |
| Application | EMC |
| Type | B24 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M32 |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Dimensional drawing |  |
| Width | 57 mm |
| Height | 100 mm |
| Length | 152 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 112 mm |
Material specifications
| Seal material | NBR, conductive |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder coating |
| Locking latch material | High-grade steel, handle: PA-GF |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 1x M32 |
| Locking type | Screw |
Mounting
| Assembly note | In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. |
| If insulating powder coating is present on the control cabinet panel, it should be removed from the profile gasket area in order to ensure optimum shielding. |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 57 mm |
| Height (EF000040) | 100 mm |
| Depth (EF000049) | 152 mm |
| Type of housing (EF006980) | Plug case |
| Housing material (EF001596) | Aluminium |
| Coating housing (EF001601) | Powder coated |
| Housing colour (EF000136) | Grey |
| Position cable feed (EF008218) | Sideways |
| Position of the shackle (EF008459) | None |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Metric |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Number of conduit inlets (EF000437) | 1 |
| Type of locking (EF000208) | Bayonet |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP65 |
