View larger
Images are for illustrative purposes only. Please refer to data sheet for details

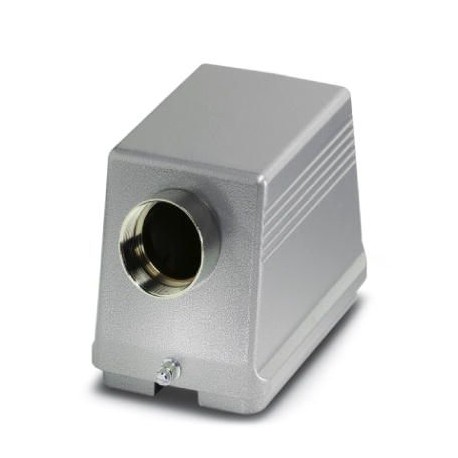

HC-B 48-TFL-96/O1PG29S 1675162 PHOENIX CONTACT Housing
HC-B 48-TFL-96/O1PG29S
1675162
PHOENIX CONTACT
1 Pcs.
Housing
Overhead housing, for longitudinal flange, height 96 mm, without cable gland, 1x Pg29, side cable outlet
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1675162 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 635 (C-2-2017) |
| GTIN | 4017918149925 |
| Weight per Piece (excluding packing) | 648.900 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B48, DD216, M |
|---|---|
| Size | B48 |
| Housing type | Sleeve housing |
| Color | gray |
| Locking type | for single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 1x Pg29 |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
