View larger
Images are for illustrative purposes only. Please refer to data sheet for details

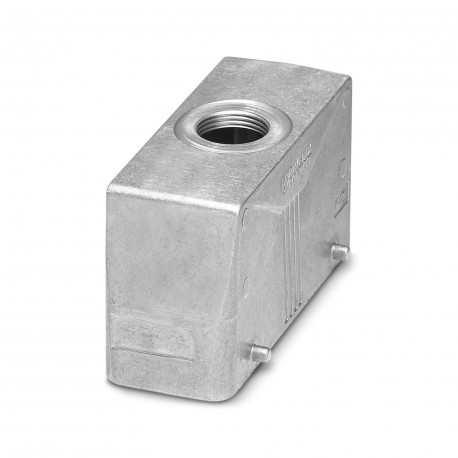

HC-STA-B24-HLFD-1TTP21-EL-AL 1412781 PHOENIX CONTACT Housing
HC-STA-B24-HLFD-1TTP21-EL-AL
1412781
PHOENIX CONTACT
1 Pcs.
Housing
B24 aerial housing, for cross flange, material: Injected cast aluminum, seawater resistant, cable outlets: 1, straight, 1x Pg21, height: 60 mm, cable gland: without, Standard
Sleeve housing B24, for double locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, straight, 1x Pg21, height: 60 mm, cable gland: none, Standard
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | for contact inserts HC-B24, BB46, D64, DD108, HV10/16, M |
| General | also available as a powder-coated or color version: 1373257 HC-STA-B24-HLFD-1TTP21-EL/... |
Product properties
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B24 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg21 |
| Type | Low design |
| Cable outlet | straight |
| Pg screw connection | none |
| Data management status | |
| Article revision | 03 |
Dimensions
| Dimensional drawing |  |
| Width | 44 mm |
| Height | 60 mm |
| Length | 120 mm |
Material specifications
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 1x Pg21 |
| Locking type | Pin |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK09 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
