View larger
Images are for illustrative purposes only. Please refer to data sheet for details

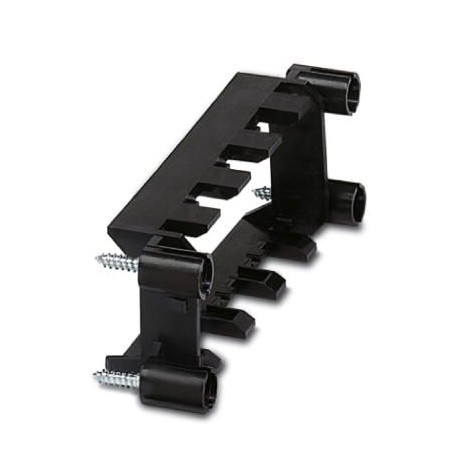

VC-TR4/5M 1852927 PHOENIX CONTACT Sleeve frame
VC-TR4/5M
1852927
PHOENIX CONTACT
5 Pcs.
Sleeve frame
Aerial frame, Item family: VARIOCON, construction: VC4, housing material: Polyamide, color: black
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1852927 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 358 (PC-2009) |
| GTIN | 4017918134334 |
| Weight per Piece (excluding packing) | 11.610 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
General
| Size | VC4 |
|---|---|
| Material | PA-GF |
| Housing material | PA 6.6 |
| Cable gland material | Steel, galvanized |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027189239eCl@ss 5.127144000eCl@ss 6.027144000eCl@ss 7.027144001eCl@ss 8.027144001eCl@ss 9.027144001
| Feature Name | Feature Value |
|---|---|
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 95.2 mm |
| Height (EF000040) | 27.5 mm |
| Depth (EF000049) | 20.2 mm |
