View larger
Images are for illustrative purposes only. Please refer to data sheet for details

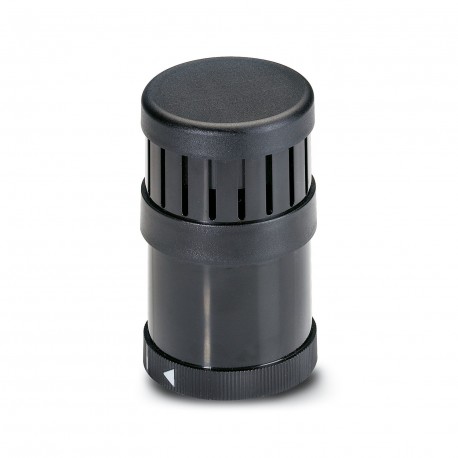

PSD-S AE SP1-3 100DB/2 2700137 PHOENIX CONTACT Acoustic element
PSD-S AE SP1-3 100DB/2
2700137
PHOENIX CONTACT
1 Pcs.
Acoustic element
Siren element, pulse sound, 24VDC, self-regulating volume, max.100dB(A), black
Automation > Acoustic module for signal tower
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
Product properties
| Product type | Acoustic element |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Maximum power dissipation for nominal condition | 3.6 W |
| General | |
| Input voltage | 24 V DC ±10 % |
| Nominal input voltage range | 21.6 V DC ... 26.4 V DC |
| Maximum inrush current | max. 500 mA |
| Current consumption | 150 mA |
| Operating time | 100 % |
| Service life electrical | min. 5,000 h |
| Type of acoustic signal | Pulse tone, automatic volume control |
| Signal frequency | approx. 1 Hz |
| Tone frequency | approx. 2.5 kHz |
| Volume range | max. 80 db(A) ... 100 db(A) |
Dimensions
| Dimensional drawing |  |
| Height | 110 mm |
| Diameter | 71.5 mm |
Material specifications
| Color | black |
| Material | Polycarbonate PC |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65, when installed |
| Ambient temperature (operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Outer diameter (EF000015) | 71.5 mm |
| Colour (EF000007) | Black |
| Voltage type (EF000187) | DC |
| Degree of protection (IP) (EF005474) | IP65 |
| Loudness (EF000144) | 100 dB |
