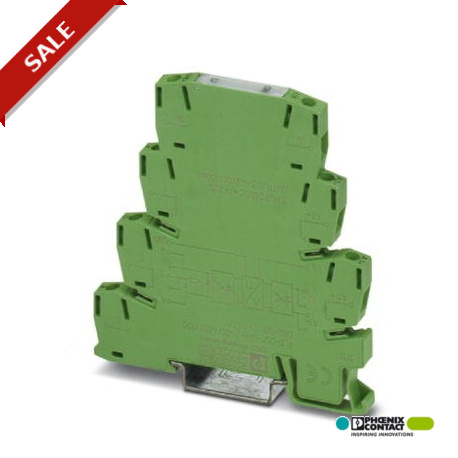

PHOENIX CONTACT PLC-OSC-LPE-24DC/48DC/100 PLC-OSC-LPE-24DC/48DC/100 2903171 PHOENIX CONTACT Single-channel pulse expansion module, input: 24 V DC, out.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-OSC-LPE-24DC/48DC/100 2903171 PHOENIX CONTACT Single-channel pulse expansion module, input: 24 V DC, out..

PLC-OSC-LPE-24DC/48DC/100

2903171

PHOENIX CONTACT

1 Pcs.

Single-channel pulse expansion module, input: 24 V DC, output: 3 - 48 V DC/100 mA, supply: 24 V DC, screw connection

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product description

DIP switch settings:

Function

DIP A low - no restart when triggered again (default)

DIP A high - restart when triggered again

DIP B low - input pulse time > 2 ms (default)

DIP B high - input pulse time > 100 us

Pulse expansion times

DIP 1 - 10 ms

DIP 2 - 20 ms

DIP 3 - 40 ms

DIP 4 - 80 ms

DIP 5 - 160 ms

DIP 6 - 320 ms

DIP 7 - 640 ms

DIP 8 - 1280 ms

No DIP switch set: no switching function for the output

If the input signal is longer than the selected time, the output is switched off after removal of the input signal.

The settings are applied after a voltage reset of the rated control supply voltage.

Dimensions

Width6.2 mm
Height80 mm
Depth86 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 75 °C
Degree of protectionIP20

Input data

"0" signal switching threshold in reference to UC< 0.4
"1" signal switching threshold in reference to UC> 0.8
Status displayYellow LED
Operating voltage displayGreen LED
Type of protectionProtection against polarity reversal
Surge protection
Surge voltage protection> 33 V DC

Output data

Output voltage range3 V DC ... 48 V DC
Limiting continuous current100 mA
Surge voltage protection> 54 V DC
Voltage drop at max. limiting continuous current< 1 V DC
Output circuit3-conductor, ground-referenced
Type of protectionProtection against polarity reversal
Surge protection
Free running

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Test voltage input/output2.5 kVrms(50 Hz, 1 min.)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsDIN EN 50178
Rated insulation voltage50 V DC
Pollution degree2
Overvoltage categoryII

ETIM for 2903171 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 19.2 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 0.1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
