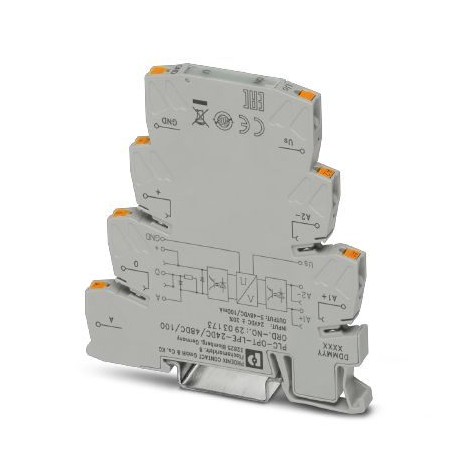

PLC-OPT-LPE-24DC/48DC/100 2903173 PHOENIX CONTACT Timer module
PLC-OPT-LPE-24DC/48DC/100
2903173
PHOENIX CONTACT
1 Pcs.
Timer module
1-channel pulse extension module, input: 24 V DC, output: 3-48 V DC/100 mA, power: 24 V DC, push-in connection
Automation > Optocoupler
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2903173 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 422 (C-5-2017) |
| GTIN | 4046356727860 |
| Weight per Piece (excluding packing) | 32.350 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Degree of protection | IP20 |
Input data
| Rated control circuit supply voltage US | 24 V DC |
|---|---|
| Input voltage range | 19.2 V DC ... 28.8 V DC |
| Rated control supply current IS | 13 mA (Input low, output low) |
| 19 mA (Input high, output high) | |
| Rated actuating voltage UC | 24 V DC |
| "0" signal switching threshold in reference to UC | < 0.4 |
| "1" signal switching threshold in reference to UC | > 0.8 |
| Status display | Yellow LED |
| Operating voltage display | Green LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Surge voltage protection | > 33 V DC |
| Power dissipation for nominal condition | 0.07 W |
Output data
| Output voltage range | 3 V DC ... 48 V DC |
|---|---|
| Limiting continuous current | 100 mA |
| Surge voltage protection | > 54 V DC |
| Voltage drop at max. limiting continuous current | < 1 V DC |
| Output circuit | 3-conductor, ground-referenced |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Free running |
Connection data 1
| Connection name | Input side |
|---|---|
| Connection method | Push-in connection |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Connection data 2
| Connection name | Output side |
|---|---|
| Connection method | Push-in connection |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
General
| Test voltage input/output | 2.5 kVrms(50 Hz, 1 min.) |
|---|---|
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Operating mode | 100% operating factor |
| Designation | Air clearances and creepage distances between the power circuits |
| Standards/regulations | DIN EN 50178 |
| Degree of pollution | 2 |
| Overvoltage category | II |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 50 V DC |
| Rated surge voltage | 0.5 kV |
| Insulation | Basic insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371001eCl@ss 5.127371000eCl@ss 6.027371600eCl@ss 7.027371604eCl@ss 8.027371604eCl@ss 9.027371604
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 19.2 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Output voltage (EF003933) | 3 V |
| Type of output voltage (EF008222) | DC |
| Rated operation current Ie (EF001443) | 0.1 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | Yes |
