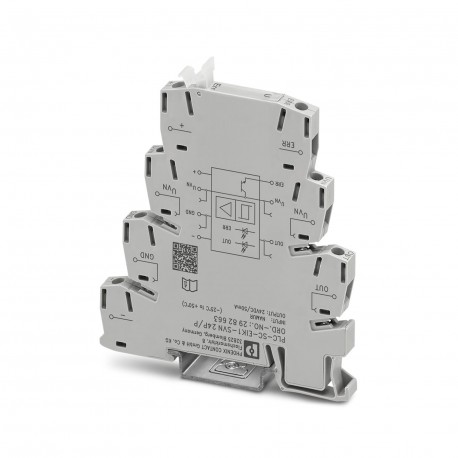

PHOENIX CONTACT PLC-SC-EIK 1-SVN 24P/P PLC-SC-EIK 1-SVN 24P/P 2982663 PHOENIX CONTACT Solid-state relay module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-SC-EIK 1-SVN 24P/P 2982663 PHOENIX CONTACT Solid-state relay module

PLC-SC-EIK 1-SVN 24P/P

2982663

PHOENIX CONTACT

1 Pcs.

Solid-state relay module PLC-INTERFACE for NAMUR applications, consisting of PLC-BSC.../21 base terminal block with screw connection and integrated circuit, for installation on DIN rail NS 35/7.5, output with positive switching, supply voltage 24 V DC

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2982663
Packing unit10 pc
Catalog pagePage 420 (C-5-2017)
GTIN4046356147330
Weight per Piece (excluding packing)35.540 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth86 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 50 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Degree of protectionIP20

Input data

DesignationDevice supply
Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range19.2 V DC ... 28.8 V DC
Typical input current at UNapprox. 14 mA
Max. current consumptionapprox. 70 mA (at 50 mA output current)
Operating voltage displayGreen LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Suppressor diode
DesignationControl circuit
Nominal input voltage UN8.2 V DC ±10 %
Type of protectionSurge protection
Protective circuit/componentSuppressor diode
Non-load voltage8.2 V DC ±10 %
Switching point≥ 2.1 mA (In conductive state)
≤ 1.2 mA (In blocking state)
6.3 mA ... 10 mA (in the event of a short-circuit)
0 mA ... 0.35 mA (In the event of a wire break)
Switching hysteresisapprox. 0.2 mA
Internal resistanceapprox. 1 kΩ
Cable length< 30 m
Power dissipation for nominal condition0.34 W

Output data

DesignationSignal output
Output nominal voltage≤ 100 mV (In conductive state)
UVN- UR;in blocking state
Limiting continuous current50 mA
Transmission frequencyapprox. 350 Hz
Voltage drop at max. limiting continuous current≤ 1.5 V (UR)
Status displayGreen LED
IndicationRed LED
Type of protectionSurge protection
Protective circuit/componentSuppressor diode
DesignationAlarm output
Output nominal voltageUVN- URes
Limiting continuous current50 mA
Voltage drop at max. limiting continuous current≤ 2 V (URest)
IndicationRed LED
Type of protectionSurge protection
Protective circuit/componentSuppressor diode

Connection data 1

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 12

Connection data 2

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 12

General

Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationAir clearances and creepage distances
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryI

Standards and Regulations

DesignationAir clearances and creepage distances
Standards/regulationsIEC 60664
EN 50178
Rated insulation voltage50 V DC
Rated surge voltage0.4 kV
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryI
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2982663 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 19.2 V
Type of voltage (input voltage) (EF003033) DC
Rated operation current Ie (EF001443) 0.05 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
