View larger
Images are for illustrative purposes only. Please refer to data sheet for details

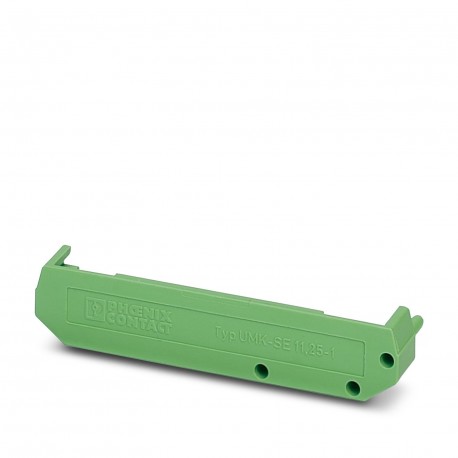

UMK-SE 11,25-1 2970442 PHOENIX CONTACT Components of electronic housing
UMK-SE 11,25-1
2970442
PHOENIX CONTACT
50 Pcs.
Components of electronic housing
Side element, 11.25 mm wide, without index slot
Side element, 11.25 mm wide, without marker groove
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Panel mounting base side part |
| Housing type | Press-drawn section housings |
| Housing series | UMK |
| Product family | UMK SE |
| Type | Lateral element |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Length | 11.25 mm |
| External dimensions | |
| Profile width (external) | 77 mm |
| Internal dimensions | |
| Profile width (internal) | 72.2 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Housing material | Polyamide |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
