View larger
Images are for illustrative purposes only. Please refer to data sheet for details

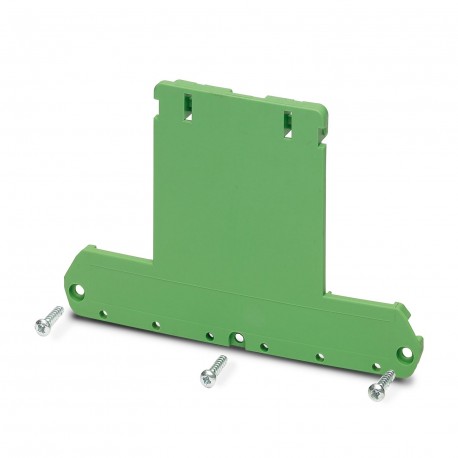

UM108-SE-A60 2959748 PHOENIX CONTACT Electronic housing
UM108-SE-A60
2959748
PHOENIX CONTACT
10 Pcs.
Electronic housing
High side element, without foot, for U-shaped cover with a width of 60 mm.
Side element, without foot, tall version, for 60 mm wide U-shaped cover.
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Panel mounting base side part |
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM108 |
| Type | Lateral element |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 01 |
Dimensions
| Dimensional drawing |  |
| Depth | 125 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Depth (EF000049) | 125 mm |
