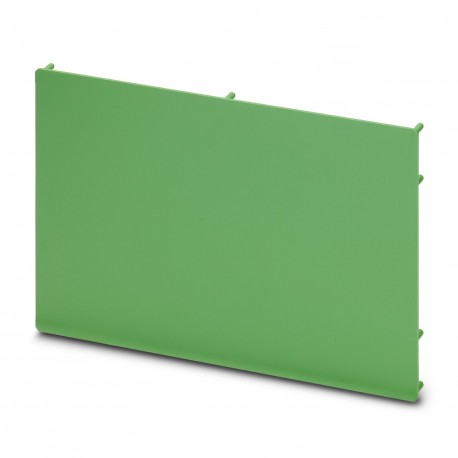

UEG-EU-SE 2956822 PHOENIX CONTACT Side element
UEG-EU-SE
2956822
PHOENIX CONTACT
5 Pcs.
Side element
Side element, 2 pieces required, for the completion of the base element, thickness 1.5 mm.
Side element, two pieces necessary, for closing the base element, 1.5 mm thick.
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Panel mounting base side part |
| Housing type | Component housing |
| Housing series | UEG |
| Product family | UEG-EU |
| Type | Side part |
Dimensions
| Dimensional drawing |  |
| Width | 1.5 mm |
| Installed height | 127.5 mm |
| Depth | 172 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | HB |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 1.5 mm |
| Depth (EF000049) | 172 mm |
