View larger
Images are for illustrative purposes only. Please refer to data sheet for details

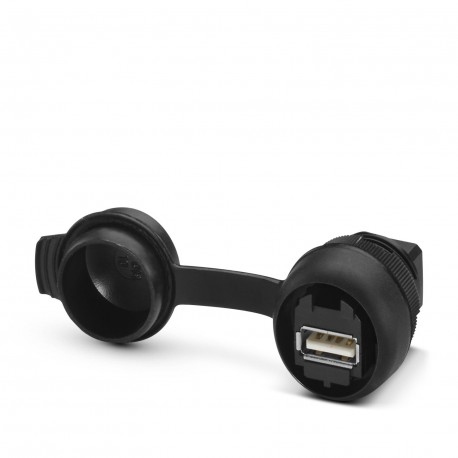

SI-RND-U1A 1425185 PHOENIX CONTACT Data interface
SI-RND-U1A
1425185
PHOENIX CONTACT
1 Pcs.
Data interface
USB A 3.0 service connection (female/female connector), with protective cap
Service socket with USB A 3.0 (socket/socket), with protective cover
Connectors > Modular connector (industrial connector)
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Data front plate |
| Number of positions | 4 |
| Connection profile | USB-A |
| Data management status | |
| Article revision | 01 |
Electrical properties
| Insulation resistance | > 1000 MΩ |
Dimensions
| Dimensional drawing |  |
| Width | 29.5 mm |
| Height | 42.7 mm |
Material specifications
| Material Housing | PA |
| Material Shield | Stainless steel, nickel plated (360° shield contact) |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | gold-plated |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 1500 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 (with closed protective cover) |
| Ambient temperature (operation) | -40 °C ... 70 °C |
Standards and regulations
| Standard designation | Connector standard |
| Standards/specifications | IEC 60176-3-107 |
| Standard designation | UL standard for communication accessories |
| Standards/specifications | UL 1863 |
Mounting
| Assembly note | Panel thickness: 1 mm ... 3 mm |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 29.5 mm |
| Height (EF000040) | 42.7 mm |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
