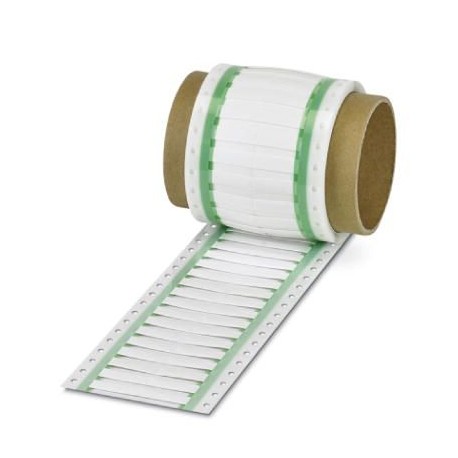

PHOENIX CONTACT WMS 4,8 (30X9)R WMS 4,8 (30X9)R 0800375 PHOENIX CONTACT Shrink sleeve, Roll, white, unlabeled, can be labeled with: THERMOMA.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WMS 4,8 (30X9)R 0800375 PHOENIX CONTACT Shrink sleeve, Roll, white, unlabeled, can be labeled with: THERMOMA..

WMS 4,8 (30X9)R

0800375

PHOENIX CONTACT

1 Pcs.

Shrink sleeve, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK X1.2, Perforated, Mounting type: slide on, Cable diameter: 1.6-4.8 mm, Lettering field: 30 x 9 mm Heat shrink tubing, Roll, white, unlabeled, labelable with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL X1, THERMOMARK ROLL, THERMOMARK ROLL 2.0, THERMOMARK W, THERMOMARK X1.2, Perforated, mounting class: slip, cable diameter range: 1.6 ... 4.8 mm, usable area: 30x9mm, Number of individual indexes: 500

Cables > Cable coding system
MS Material

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Length (b) 30 mm
Width (a) 9 mm
Cable diameter 1.6 mm ... 4.8 mm

Ambient conditions

Ambient temperature (operation) -55 °C ... 135 °C

General

Color white
Base element material polyolefine
Components Halogen-free
Material Polyolefine
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Number of individual labels 500
Number of individual labels per row 2
Marking mounting type slide on
