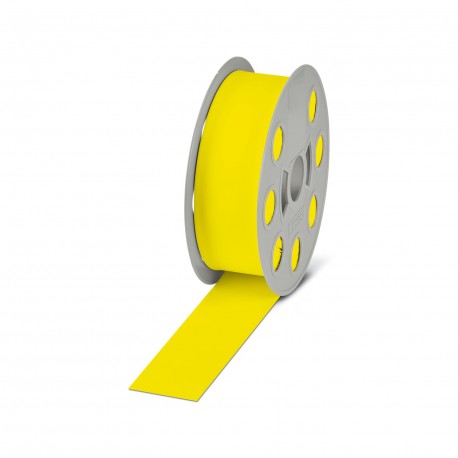

PHOENIX CONTACT WMS 38,1 (EX60)R YE CUS WMS 38,1 (EX60)R YE CUS 0800723 PHOENIX CONTACT Shrink sleeve

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

WMS 38,1 (EX60)R YE CUS 0800723 PHOENIX CONTACT Shrink sleeve

Name: WMS 38,1 (EX60)R YE CUS 0800723 PHOENIX CONTACT Shrink sleeve
Brand: PHOENIX CONTACT
SKU: 0800723

Reference: WMS 38,1 (EX60)R YE CUS

Code: 0800723

Manufacturer: PHOENIX CONTACT

Units per package: 10 Pcs.

Description:

Shrink sleeve Heat Shrink Casing, Roll, Yellow: Customized, Drilled or Cut, Mounting Class: Slip, Cable Diameter Range: 12.7 ... 38.1 mm, usable area: max. 30 mm Heat Shrink Sleeve, Roll, Yellow: Customized, Drilled or Cut, Mounting Class: Slip, Cable Diameter Range: 12.7 ... 38.1 mm

Categories:
Cables > Cable coding system
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	0800723
Packing unit	1 pc
Note	Made to Order (non-returnable)
Catalog page	Page 207 (C-5-2013)
GTIN	4046356628587
Weight per Piece (excluding packing)	0.940 g
Custom tariff number	49119900
Country of origin	DE (Germany)

Dimensions

Length (b)	15 m
Width (a)	60 mm
Cable diameter	12.7 mm ... 38.1 mm

Ambient conditions

Ambient temperature (operation)	-55 °C ... 135 °C

General

Color	yellow
Base element material	polyolefine
Type	Shrink sleeve
Components	halogen-free
Material	Polyolefine
Wipe resistance	DIN EN 61010-1 (VDE 0411-1)
Printing	user-defined
Marking mounting type	slide on
