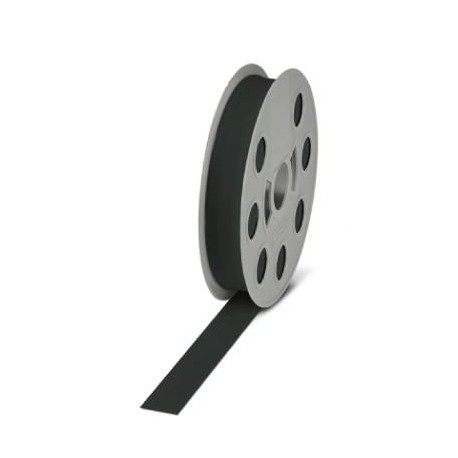

PHOENIX CONTACT WMS 19,1 (EX30)R BK WMS 19,1 (EX30)R BK 0800423 PHOENIX CONTACT Shrink sleeve, Roll, black, unlabeled, can be labeled with: THER.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WMS 19,1 (EX30)R BK 0800423 PHOENIX CONTACT Shrink sleeve, Roll, black, unlabeled, can be labeled with: THER..

WMS 19,1 (EX30)R BK

0800423

PHOENIX CONTACT

1 Pcs.

Shrink sleeve, Roll, black, unlabeled, can be labeled with: THERMOMARK W, THERMOMARK ROLL, THERMOMARK X1.2, THERMOMARK ROLL X1, Unperforated, Mounting type: slide on, Cable diameter: 6.4-19.1 mm, Lettering field: 30 x 20000 mm Heat-shrink tubing, Roll, black, unlabeled, labelable with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL X1, THERMOMARK ROLL, THERMOMARK ROLL 2.0, THERMOMARK W, THERMOMARK X1.2, UNDRILLED, MOUNTING CLASS: SLIP, CABLE DIAMETER RANGE: 6.4 ... 19.1 mm, usable area: 30x20000mm, length. Roll: 20 m

Cables > Cable coding system
MS Material

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Length (b) 20 m
Width (a) 30 mm
Cable diameter 6.4 mm ... 19.1 mm

Ambient conditions

Ambient temperature (operation) -55 °C ... 135 °C

General

Color black
Base element material polyolefine
Components Halogen-free
Material Polyolefine
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Number of individual labels 660
Number of individual labels per row 1
Marking mounting type slide on
