View larger
Images are for illustrative purposes only. Please refer to data sheet for details

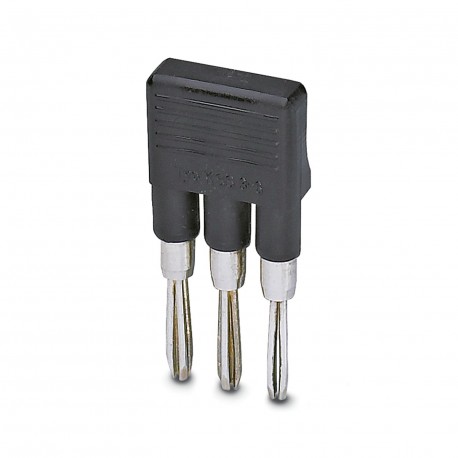

KSS 3-6 0309523 PHOENIX CONTACT Short-circuit connector
KSS 3-6
0309523
PHOENIX CONTACT
10 Pcs.
Short-circuit connector
Short circuit connector, pitch: 6mm, color: black
Short-circuit connector, pitch: 6 mm, number of positions: 3, color: black
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Short-circuit connector |
| Number of positions | 3 |
| Pitch | 6 mm |
| Data management status | |
| Article revision | 02 |
Dimensions
| Pitch | 6 mm |
Material specifications
| Color | black (RAL 9005) |
| Material | Copper |
| Flammability rating according to UL 94 | V2 |
| Insulating material | PA |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting type | Plug-in mounting |
