View larger
Images are for illustrative purposes only. Please refer to data sheet for details

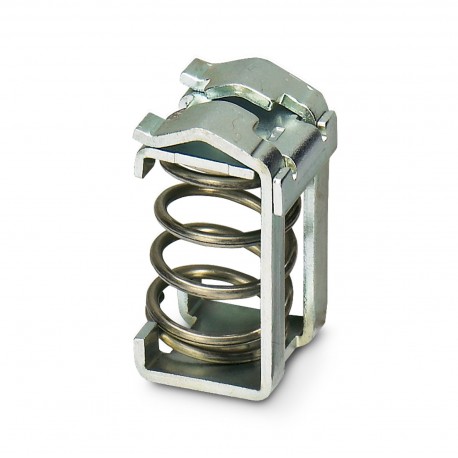

SKS 8 3240210 PHOENIX CONTACT Shield connection terminal block
SKS 8
3240210
PHOENIX CONTACT
10 Pcs.
Shield connection terminal block
Terminal block for screen connection, for screen support on busbars
Shield connection terminal block, for applying the shield to busbars
Automation > Shield connection clamp
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Shield connection clamp |
| Pitch | 12.4 mm |
| Number of connections | 1 |
| Number of rows | 1 |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Maximum power dissipation for nominal condition | 1.31 W |
Connection data
| Grounding foot | Yes |
| Cross section AWG | 12 ... 8 (converted acc. to IEC) |
| Conductor cross section, flexible [AWG] | 12 ... 8 (converted acc. to IEC) |
Dimensions
| Dimensional drawing |  |
| Width | 12.4 mm |
| Height | 18 mm |
| Depth | 26 mm |
| Pitch | 12.4 mm |
| External dimensions | |
| Outside diameter | 3 mm ... 8 mm |
Material specifications
| Color | silver-colored |
| Material | Steel |
Cable/line
| External cable diameter | 3 mm ... 8 mm |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
Mounting
| Mounting type | Neutral busbar |
| Feature Name | Feature Value |
|---|---|
| Permitted cable diameter (EF008217) | 3 mm |
| Mounting method (EF000003) | Busbar |
| Type of electric connection (EF003961) | Spring connection |
| Width (EF000008) | 12.4 mm |
| Height (EF000040) | 18 mm |
