View larger
Images are for illustrative purposes only. Please refer to data sheet for details

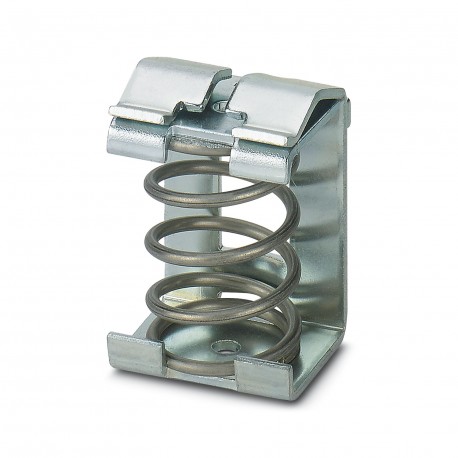

SKS 20 3240212 PHOENIX CONTACT Shield connection terminal block
SKS 20
3240212
PHOENIX CONTACT
10 Pcs.
Shield connection terminal block
Terminal block for screen connection, for screen support on busbars
Shield connection terminal block, for applying the shield to busbars
Automation > Shield connection clamp
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Shield connection clamp |
| Pitch | 24.7 mm |
| Number of connections | 1 |
| Number of rows | 1 |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Maximum power dissipation for nominal condition | 1.31 W |
Connection data
| Grounding foot | Yes |
| Conductor cross section rigid | 10 mm² ... 20 mm² |
| Cross section AWG | 6 ... 6 (converted acc. to IEC) |
| Conductor cross section flexible | 10 mm² ... 20 mm² |
| Conductor cross section, flexible [AWG] | 6 ... 6 (converted acc. to IEC) |
Dimensions
| Width | 24.7 mm |
| Height | 27 mm |
| Depth | 40.5 mm |
| Pitch | 24.7 mm |
Material specifications
| Color | silver-colored |
| Material | Steel |
Cable/line
| External cable diameter | 5 mm ... 20 mm |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
Mounting
| Mounting type | Neutral busbar |
| Feature Name | Feature Value |
|---|---|
| Permitted cable diameter (EF008217) | 5 mm |
| Mounting method (EF000003) | Busbar |
| Type of electric connection (EF003961) | Spring connection |
| Width (EF000008) | 24.7 mm |
| Height (EF000040) | 27 mm |
