View larger
Images are for illustrative purposes only. Please refer to data sheet for details

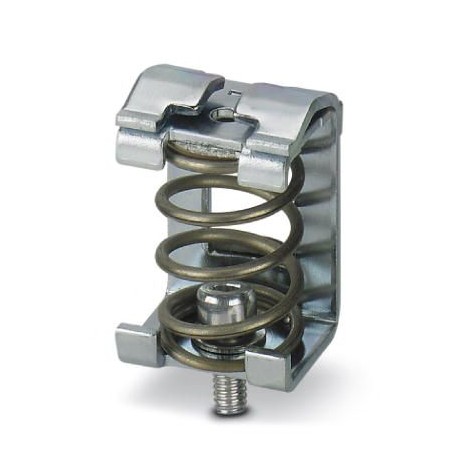

SKS 14-D 3240214 PHOENIX CONTACT Shield connection terminal block
SKS 14-D
3240214
PHOENIX CONTACT
10 Pcs.
Shield connection terminal block
Terminal block for screen connection, for direct display support on conductive mounting plates
Automation > Shield connection clamp
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240214 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 613 (C-3-2017) |
| GTIN | 4046356458894 |
| Weight per Piece (excluding packing) | 19.960 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 1 |
| Cable diameter | 3 mm ... 14 mm |
| Color | silver |
| Open side panel | No |
Connection data
| Connection method | Spring-cage connection |
|---|---|
| Conductor cross section solid min. | 4 mm² |
| Conductor cross section solid max. | 13.5 mm² |
| Conductor cross section flexible min. | 4 mm² |
| Conductor cross section flexible max. | 13.5 mm² |
| Conductor cross section AWG min. | 10 |
| Conductor cross section AWG max. | 6 |
| Screw thread | M4 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141131eCl@ss 4.127141131eCl@ss 5.027141131eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141150eCl@ss 8.027141150eCl@ss 9.027141150
| Feature Name | Feature Value |
|---|---|
| Permitted cable diameter (EF008217) | 3 mm |
| Mounting method (EF000003) | Other |
| Type of electric connection (EF003961) | Spring connection |
| Width (EF000008) | 19 mm |
| Height (EF000040) | 21 mm |
