PHOENIX CONTACT HC-D 4-1ST HC-D 4-1ST 1886144 PHOENIX CONTACT Shield connection clip View larger
Images are for illustrative purposes only. Please refer to data sheet for details

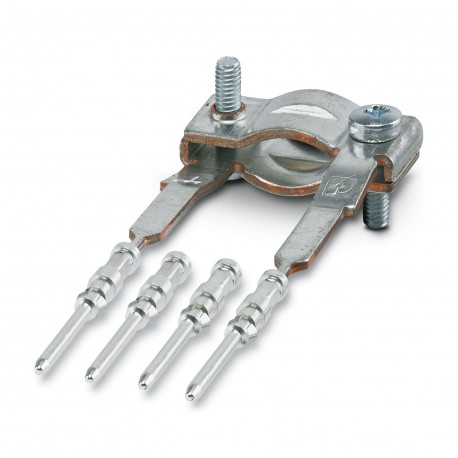

HC-D 4-1ST 1886144 PHOENIX CONTACT Shield connection clip

HC-D 4-1ST

1886144

PHOENIX CONTACT

1 Pcs.

Shield connection clip Screen connection for a shielded cable on male contact holders, without loose crimped contacts Shield connection for one shielded cable on male contact carriers, without loose crimp contacts

Connectors > Accessories/spare parts for industrial connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Generalfor HC-D40, HC-D64 contact carriers
Product properties
Product typeShield connection
Contact material typeturned
Electrical properties
Rated voltage (III/3)60 V
Connection data
Connection technology
Connection methodCrimp connection
Dimensions
Mechanical characteristics
Contact diameter1.6 mm
Material specifications
Contact materialCopper alloy
Contact surface materialhard-silver plated
Cable/line
External cable diameter6 mm ... 9 mm
Stripping length of the individual wire6 mm
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 60 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
