View larger
Images are for illustrative purposes only. Please refer to data sheet for details

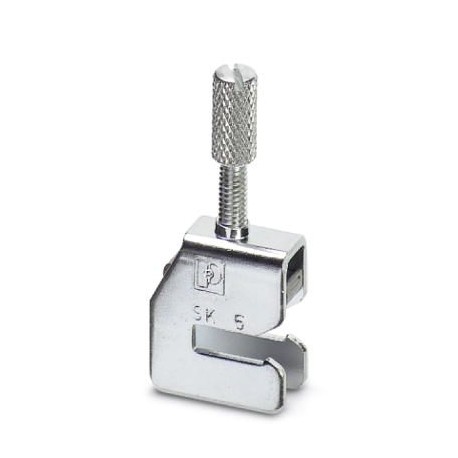

SK 5 3025338 PHOENIX CONTACT Shield connection terminal block
SK 5
3025338
PHOENIX CONTACT
10 Pcs.
Shield connection terminal block
Terminal block for screen connection, for screen support on busbars, contact resistance < 1 mΩ
Automation > Shield connection clamp
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3025338 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 612 (C-3-2017) |
| GTIN | 4046356051835 |
| Weight per Piece (excluding packing) | 13.420 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 1 |
| Cable diameter | 2 mm ... 5 mm |
| Color | silver |
| Open side panel | No |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Oscillation, broadband noise test result | Test passed |
| Test specification, oscillation, broadband noise | DIN EN 50155 (VDE 0115-200):2008-03 |
| Test spectrum | Service life test category 1, class B, body mounted |
| Test frequency | f1= 5 Hz to f2= 150 Hz |
| ASD level | 0.02 g²/Hz |
| Acceleration | 0,8 g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Shock test result | Test passed |
| Test specification, shock test | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock form | Half-sine |
| Acceleration | 5 g |
| Shock duration | 30 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141131eCl@ss 4.127141131eCl@ss 5.027141131eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141150eCl@ss 8.027141150eCl@ss 9.027141150
| Feature Name | Feature Value |
|---|---|
| Permitted cable diameter (EF008217) | 2 mm |
| Mounting method (EF000003) | Busbar |
| Type of electric connection (EF003961) | Screw connection |
| Width (EF000008) | 9 mm |
| Height (EF000040) | 19.5 mm |
