View larger
Images are for illustrative purposes only. Please refer to data sheet for details

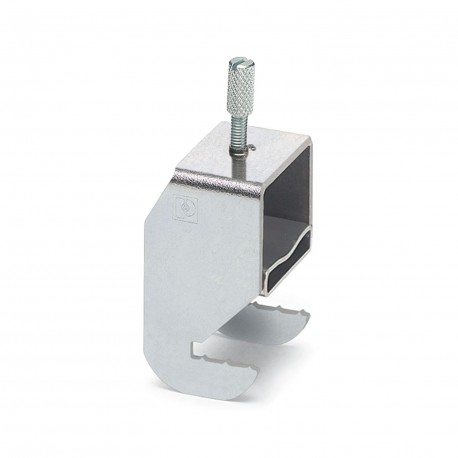

SK 35-D 3026890 PHOENIX CONTACT Shield connection terminal block
SK 35-D
3026890
PHOENIX CONTACT
10 Pcs.
Shield connection terminal block
Terminal for screen connection, for direct screen support on conductive mounting plates, sheet thickness 1 ... 2 mm
Shield connection terminal block, for direct shield on conductive mounting panels, sheet thickness 1 mm ... 2 mm
Automation > Shield connection clamp
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Shield connection clamp |
| Pitch | 40 mm |
| Number of connections | 1 |
| Number of rows | 1 |
| Data management status | |
| Article revision | 02 |
Electrical properties
| Maximum power dissipation for nominal condition | 0.77 W |
| Contact resistance | < 0.001 Ω |
Connection data
| Grounding foot | Yes |
| Screw thread | M5 |
| Tightening torque | 1.5 ... 1.8 Nm |
| Connection in acc. with standard | IEC / EN |
Dimensions
| Dimensional drawing |  |
| Width | 40 mm |
| Height | 20 mm |
| Depth | 105 mm |
| Pitch | 40 mm |
| External dimensions | |
| Outside diameter | 20 mm ... 35 mm |
Material specifications
| Color | silver-colored |
| Material | Steel |
Cable/line
| External cable diameter | 20 mm ... 35 mm |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
Standards and regulations
| Connection in acc. with standard | IEC / EN |
Mounting
| Mounting type | direct screw connection |
| Feature Name | Feature Value |
|---|---|
| Permitted cable diameter (EF008217) | 20 mm |
| Mounting method (EF000003) | Other |
| Type of electric connection (EF003961) | Screw connection |
| Width (EF000008) | 40 mm |
| Height (EF000040) | 20 mm |
