View larger
Images are for illustrative purposes only. Please refer to data sheet for details

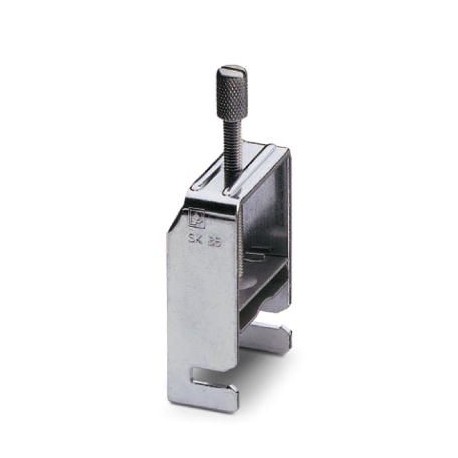

SK 35 3026463 PHOENIX CONTACT Shield connection terminal block
SK 35
3026463
PHOENIX CONTACT
10 Pcs.
Shield connection terminal block
Terminal block for screen connection, for screen support on busbars, contact resistance < 1 mΩ
Automation > Shield connection clamp
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3026463 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 612 (C-3-2017) |
| GTIN | 4017918167998 |
| Weight per Piece (excluding packing) | 63.720 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 1 |
| Cable diameter | 20 mm ... 35 mm |
| Color | silver |
| Open side panel | No |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M5 |
| Tightening torque, min | 1.5 Nm |
| Tightening torque max | 1.8 Nm |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141131eCl@ss 4.127141131eCl@ss 5.027141131eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141150eCl@ss 8.027141150eCl@ss 9.027141150
| Feature Name | Feature Value |
|---|---|
| Permitted cable diameter (EF008217) | 20 mm |
| Mounting method (EF000003) | Busbar |
| Type of electric connection (EF003961) | Screw connection |
| Width (EF000008) | 40 mm |
| Height (EF000040) | 20 mm |
