View larger
Images are for illustrative purposes only. Please refer to data sheet for details

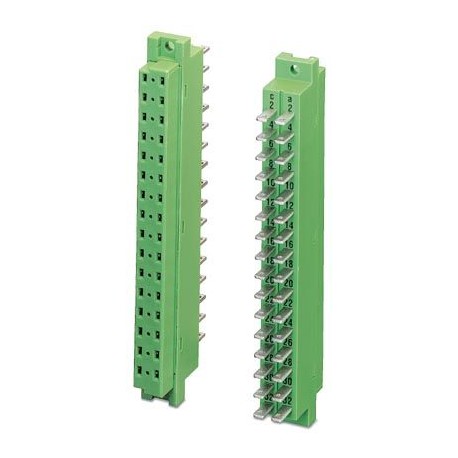

SFL (2,8-0,8)D32 2285302 PHOENIX CONTACT Socket strip
SFL (2,8-0,8)D32
2285302
PHOENIX CONTACT
10 Pcs.
Socket strip
19" female connector, color: green, contact surface: Tin, number of poles: 32, item family: SFL (2.8-0.8), pitch: 0 mm, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2285302 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 278 (CC-2002) |
| GTIN | 4017918055905 |
| Weight per Piece (excluding packing) | 28.710 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Range of articles | SFL (2,8-0,8) |
|---|---|
| Insulating material group | II |
| Rated surge voltage (III/3) | 2.5 kV |
| Nominal cross section | 0 mm² |
| Insulating material | PA-F |
| Flammability rating according to UL 94 | HB |
| Number of positions | 32 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 27.6 mm |
| Modular spacing connections (EF006827) | 0 mm |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type PCB (EF006822) | Soldering connection |
| Diameter connection pin (EF006823) | 2.8 mm |
| Housing colour (EF000136) | Green |
| Type of banding (EF007011) | Carton (for SMD) |
