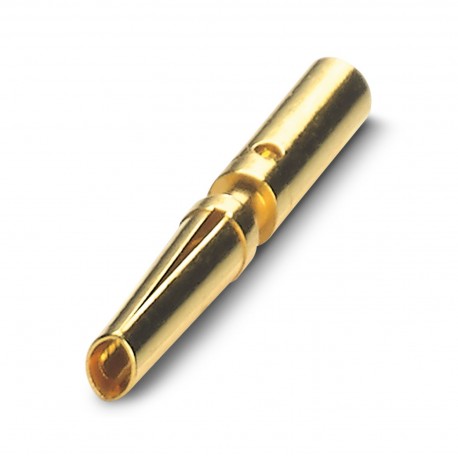

SF-06KS010 1007243 PHOENIX CONTACT Crimp contact
SF-06KS010
1007243
PHOENIX CONTACT
600 Pcs.
Crimp contact
Crimp contact, Female, machined, contact diameter: 0.6 mm, crimping range: 0.08 mm² ... 0.25 mm², Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1237993
Crimp contact, Socket, turned, contact diameter: 0.6 mm, crimp range: 0.08 mm2 ... 0.25 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1237993
Connectors > Contact for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Crimp contact |
| Contact material type | turned |
Connection data
| Connection method | Crimp connection |
| Contact connection type | Socket |
| Conductor cross section | 0.08 mm² ... 0.25 mm² |
Material specifications
| Contact surface | Nickel-plated (Ni), with gold coating (Au) |
| Contact material | CuZn |
Dimensions
| Mechanical characteristics | |
| Contact diameter | 0.6 mm |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | 100 |
Packaging specifications
| Type of packaging | PE bag |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Bus |
| Type of electric connection (EF003961) | Crimp connection |
| Diameter plug-in contact (EF007320) | 0.6 mm |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Min. number of insertion cycles (EF012212) | 100 |
