View larger
Images are for illustrative purposes only. Please refer to data sheet for details

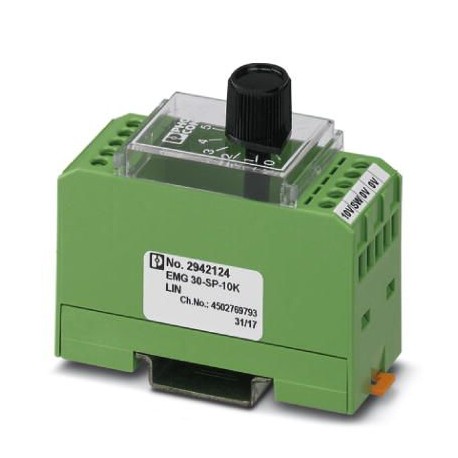

EMG 30-SP-10K LIN 2942124 PHOENIX CONTACT Setpoint adjuster
EMG 30-SP-10K LIN
2942124
PHOENIX CONTACT
10 Pcs.
Setpoint adjuster
Nominal value potentiometer, for individual presetting of nominal values, resistance value 10 kΩ
Automation > Potentiometer for command devices
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2942124 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 101 (C-5-2017) |
| GTIN | 4017918080617 |
| Weight per Piece (excluding packing) | 54.000 g |
| Custom tariff number | 85334010 |
| Country of origin | DE (Germany) |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Connection method | Screw connection |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 5.027371227eCl@ss 5.127200300eCl@ss 6.027371200eCl@ss 7.027371227eCl@ss 8.027371227eCl@ss 9.027371227
| Feature Name | Feature Value |
|---|---|
| Resistance (EF002431) | 10000 Ohm |
| Power consumption (EF000346) | 0.5 W |
| Type of electric connection (EF003961) | Screw connection |
