View larger
Images are for illustrative purposes only. Please refer to data sheet for details

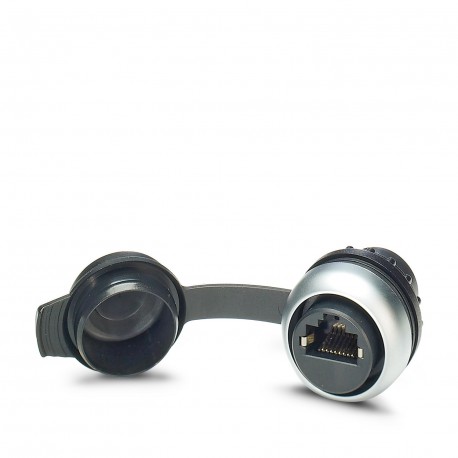

SI-SES-R1A 1404513 PHOENIX CONTACT Data interface
SI-SES-R1A
1404513
PHOENIX CONTACT
1 Pcs.
Data interface
Service box with RJ 45 (female/female), 8 metal poles, CAT5e connection
Service socket with RJ45 (socket/socket), 8-pos. metal, CAT5e connection
Automation > Front plate (switchgear cabinet)
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Data front plate |
| Number of positions | 8 |
| Connection profile | RJ45 |
| Shielded | yes |
| Insulation characteristics | |
| Degree of pollution | 3 |
Electrical properties
| Contact resistance | < 30 mΩ |
| Insulation resistance | > 500 MΩ |
| Nominal voltage UN | 24 V AC (max. 50 V) |
| Nominal current IN | max. 1.5 A |
Material specifications
| Material Housing | PA |
| Flammability rating according to UL 94 | V0 |
| Contact material | CuSn |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | > 100 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 (with closed protective cover) |
| IP20 (when plugged in) | |
| Ambient temperature (operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Mounting
| Assembly note | Front panel cut-out D = 22.5 mm |
