View larger
Images are for illustrative purposes only. Please refer to data sheet for details

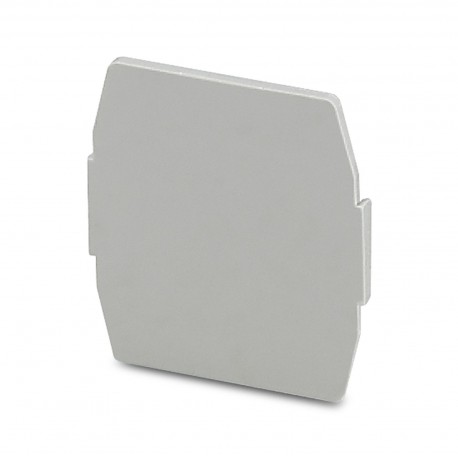

TS-K 1302215 PHOENIX CONTACT Separating plate
TS-K
1302215
PHOENIX CONTACT
50 Pcs.
Separating plate
Spacer plate, length: 22 mm, width: 0.5 mm, height: 22 mm, colour: grey
Separating plate, depth: 22 mm, width: 0.5 mm, height: 22 mm, color: gray
Automation > Endplate and partition plate for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Partition plate |
| Data management status | |
| Article revision | 05 |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Dimensions
| Width | 0.5 mm |
| Height | 22 mm |
| Depth | 22 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Feature Name | Feature Value |
|---|---|
| End plate model (EF006586) | No |
| Partition model (EF006587) | Yes |
| Colour (EF000007) | Grey |
| Thickness (EF000125) | 1 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
