View larger
Images are for illustrative purposes only. Please refer to data sheet for details

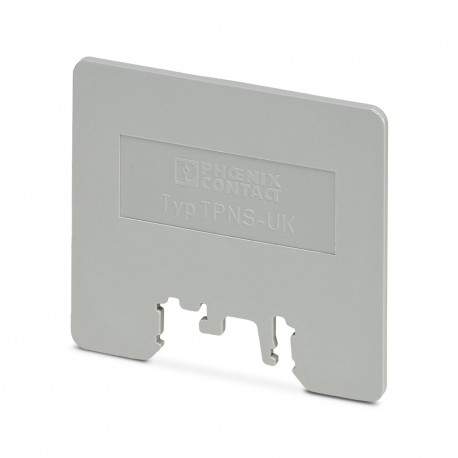

TPNS-UK 0706647 PHOENIX CONTACT Partition plate
TPNS-UK
0706647
PHOENIX CONTACT
50 Pcs.
Partition plate
Separator plate, length: 80 mm, width: 2 mm, height: 70 mm, color: grey
Partition plate, depth: 70 mm, width: 2 mm, height: 80 mm, color: gray
Automation > Endplate and partition plate for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Partition plate |
| Data management status | |
| Article revision | 01 |
Dimensions
| Width | 2 mm |
| Height | 80 mm |
| Depth | 70 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 |
| Static insulating material application in cold | -40 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
