View larger
Images are for illustrative purposes only. Please refer to data sheet for details

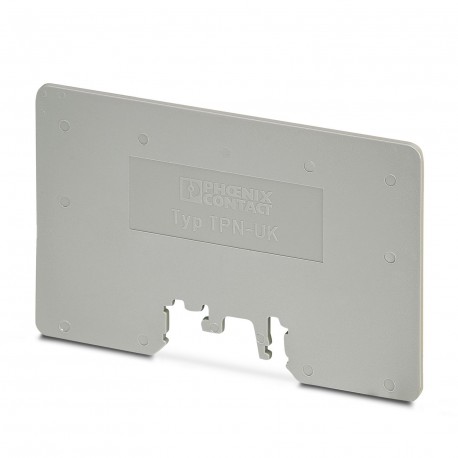

TPN-UK 3003062 PHOENIX CONTACT Partition plate
TPN-UK
3003062
PHOENIX CONTACT
10 Pcs.
Partition plate
Spacer plate, length: 110 mm, width: 2 mm, height: 69 mm, colour: grey
Partition plate, depth: 69 mm, width: 2 mm, height: 110 mm, color: gray
Automation > Endplate and partition plate for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Partition plate |
| Data management status | |
| Article revision | 01 |
Dimensions
| Width | 2 mm |
| Height | 110 mm |
| Depth | 69 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Feature Name | Feature Value |
|---|---|
| End plate model (EF006586) | No |
| Partition model (EF006587) | Yes |
| Colour (EF000007) | Grey |
| Thickness (EF000125) | 2.1 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
