View larger
Images are for illustrative purposes only. Please refer to data sheet for details

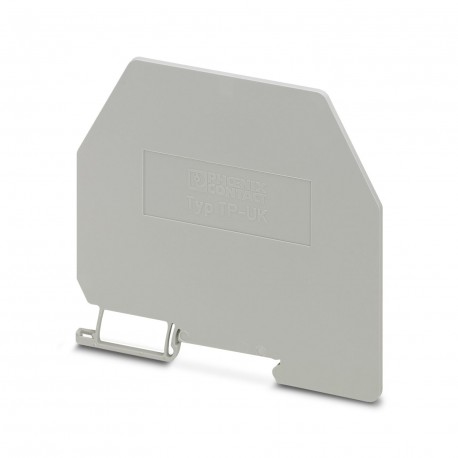

TP-UK 3003046 PHOENIX CONTACT Partition plate
TP-UK
3003046
PHOENIX CONTACT
10 Pcs.
Partition plate
Spacer plate, length: 99 mm, width: 2 mm, height: 90 mm, colour: grey
Partition plate, depth: 90 mm, width: 2 mm, height: 99 mm, color: gray
Automation > Endplate and partition plate for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Partition plate |
| Data management status | |
| Article revision | 02 |
Dimensions
| Width | 2 mm |
| Height | 99 mm |
| Depth | 90 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Feature Name | Feature Value |
|---|---|
| End plate model (EF006586) | No |
| Partition model (EF006587) | Yes |
| Colour (EF000007) | Grey |
| Thickness (EF000125) | 2.2 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
