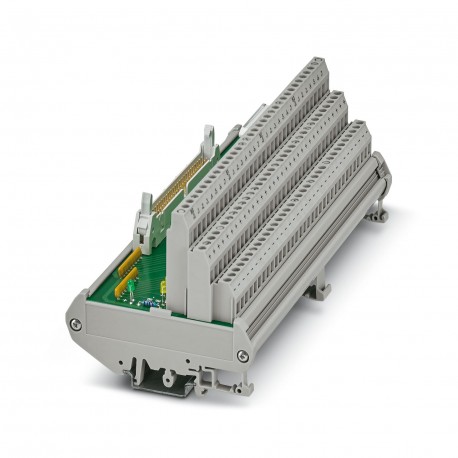

FLKMS 50/32IM/LA/PLC 2284510 PHOENIX CONTACT Passive module

FLKMS 50/32IM/LA/PLC

2284510

PHOENIX CONTACT

1 Pcs.

Passive module VARIOFACE detector module, for connection of 32 PNP detectors with light indication VARIOFACE sensor module, for connecting 32 p-n-p sensors, with LED

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE
Number of positions50
No. of channels32
Data management status
Article revision09
Insulation characteristics: Air clearances and creepage distances
InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2
Electrical properties
Operating voltage range19.2 V DC ... 26.4 V DC
Current (per branch)≤ 1 A
Current (Voltage supply)≤ 2 A
Air clearances and creepage distances
Rated insulation voltage63 V
Rated surge voltage0.6 kV (1.2/50 μs)
Supported controller SIEMENS S7-1500
Suitable I/O card6ES7521-1BL00-0AB0
6ES7522-1BL00-0AB0
6ES7522-1BL01-0AB0
Supported controller SIEMENS S7-400
Suitable I/O card6ES7421-1BL01-0AA0
6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0
Supported controller ALLEN-BRADLEY ControlLogix
Suitable I/O card1756-IB32
1756-OB32
Supported controller ALLEN-BRADLEY PLC 5
Suitable I/O card1771 IBN
1771 OBN
Supported controller HONEYWELL Experion PKS C200
Suitable I/O cardTC-IDD 321
TC-ODD 321
Supported controller MITSUBISHI MELSEC L
Suitable I/O cardLX41C4
LX42C4
LY41PT1P
LY42PT1P
Supported controller MITSUBISHI MELSEC Q
Suitable I/O cardQX81
QY81P
QY82P
QX71
QX72
QX82
QX82-S1
Supported controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM
Suitable I/O cardDDI 353
DDI 853
DDO 353
Supported controller SIEMENS S7-300 / ET 200 M
Suitable I/O cardCPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7321-1BL00-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BL00-0AA0
CPU 313C
CPU 313C-2PtP
Supported controller GE-FANUC RX3i
Suitable I/O cardIC694MDL754
IC694MDL660
Connection data
Connection 1 (control level)
Connection in acc. with standardIEC 60603-13
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions50
Insertion/withdrawal cycles> 50
Pitch2.54 mm
Connection 2 (field level)
Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Number of positions100
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)0.2 mm² ... 1.5 mm²
0.2 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Pitch5.08 mm
Signaling
Status displayLED (yellow)
Status display presentYes
Operating voltage displayGreen LED
Dimensions
Item dimensions
Width179.5 mm
Height90 mm
Depth79 mm
Material specifications
Colorgray (RAL 7042)
Housing insulation materialPolyamide 6 green
Environmental and real-life conditions
Ambient conditions
Degree of protection (Module)IP00
Degree of protection (Installation location)≥ IP54
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m
Approvals
UKCA
CertificateUKCA-compliant
Standards and regulations
Air clearances and creepage distances
Standards/regulationsEN IEC 60664-1
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2284510 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 50
Rated current (EF000227) 1 A
Depth (EF000049) 79 mm
Width (EF000008) 179.5 mm
Height (EF000040) 90 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
