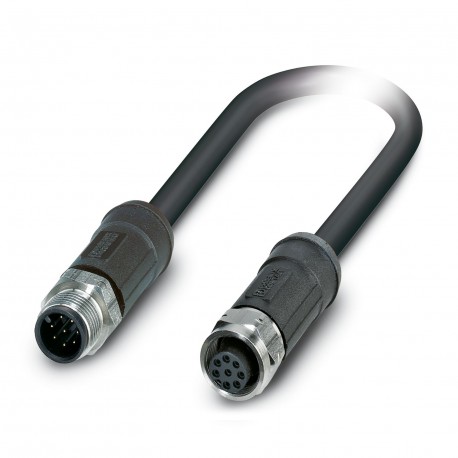

Sensor/actuator cable Sensor/actuator cable, 8-pole, halogen-free PE-X/PE-X, greyish black RAL 7021, shielded, M12 straight male connector, encoding: A, to M12 straight connection female, coding: A, cable length: 2 m, for outdoor applications, with stainless steel knurling Sensor/actuator cable, 8-position, PE-X/PE-X halogen-free, black-gray RAL 7021, shielded, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 2 m, for outdoor applications, with high-grade steel knurl

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
ApplicationExternal areas
Number of positions8
No. of cable outlets1
Shieldedyes
CodingA
Insulation characteristics
Degree of pollution3
Material specifications
Flammability rating according to UL 94V0
Seal materialFPM
Material of grip bodyPP
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPP
Material for screw connectionStainless steel
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V AC
30 V DC
Nominal current IN2 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Signaling
Status displayno
Status display presentNo
Connection data
Conductor connection
Tightening torque0.4 Nm (M12 connector)
Connector
Connection 1
TypePlug straight M12
Number of positions8
Coding typeA
Connection 2
TypeSocket straight M12
Number of positions8
Coding typeA
Cable/line
Cable length2 m
PE-X black [28X]
Dimensional drawingqdwkloiawu.jpg
Cable weight81 kg/km
Number of positions8
Shieldedyes
Cable typePE-X black [28X]
Conductor structure signal line32x 0.10 mm
AWG signal line24
Conductor cross section8x 0.25 mm²
Wire diameter incl. insulation1.17 mm ±0.02 mm
External cable diameter7.25 mm ±0.3 mm
Outer sheath, materialPE-X
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material, fillerPP yarn
Material wire insulationPE-X
Single wire, colorwhite, brown, green, yellow, gray, pink, blue, red
Thickness, insulationapprox. 0.25 mm (Core insulation)
Inner sheath thicknessapprox. 0.50 mm
Thickness, outer sheathapprox. 0.70 mm
Overall twist8 wires around filler to the core
Length of twist, overall twist67 mm
Optical shield covering85 %
Max. conductor resistance≤ 78 Ω/km (at 20 °C)
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Working capacitanceapprox. 80 pF (Line-line)
approx. 125 pF (Line-shield)
Nominal voltage, cable≤ 300 V AC
Test voltage≥ 3000 V AC (Spark test)
Test voltage Core/Shield≥ 1000.00 V AC (for 10 s)
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation37 mm
Smallest bending radius, movable installation73 mm
Dynamic load capacity (bending)Max. bending cycles: 1000000, Bending radius: 10 x D, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Flame resistanceAccording to DIN EN 60332-1-2
according to DIN EN 50266-2-5
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
According to DIN EN 50306
Other resistanceResistance to fuels (according to IEC 60811, 168 h at 70°C)
UV resistant (according to DIN VDE 0276-605)
Special propertiesInductance approx. 0.48 mH/km
Irradiated
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (Cable, flexible installation)
20 °C ±5 °C (cable, drag chain applications)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP68
IP69K
Ambient temperature (operation)-40 °C ... 105 °C (Plug / socket)
-40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4))
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1407285 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 2 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -15 °C
Rated current In (EF008250) 2 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65
