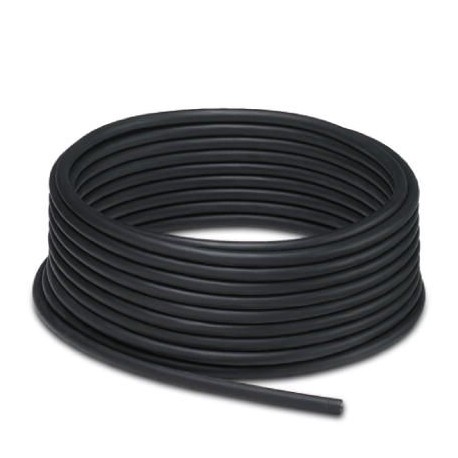

PHOENIX CONTACT SAC-4P-100,0-28X/SH-0,50 SAC-4P-100,0-28X/SH-0,50 1410679 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-100,0-28X/SH-0,50 1410679 PHOENIX CONTACT Sensor/actuator cable

SAC-4P-100,0-28X/SH-0,50

1410679

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Cable for sensors/actuators, 4 conductors, pad, PE-X, sheath. ext. black, 4 x 0.5 mm²

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1410679
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4046356905107
Weight per Piece (excluding packing)7,234.000 g
Custom tariff number85444995
Country of originDE (Germany)

Dimensions

Length of cable100 m

General

Rated voltage48 V AC
60 V DC
Number of positions4

Standards and Regulations

Flame resistanceaccording to DIN 60332-1-2
according to DIN EN 50266-2-5
Resistance to oilin accordance with DIN EN 60811-2-1
Halogen-freein accordance with DIN VDE 0472 part 815
Other resistanceUV resistant according to DIN VDE 0276-605

Cable

Cable typePE-X black
Cable type (abbreviation)28X
Cable abbreviationLi2X2X-C-Vl-2X
Conductor cross section4x 0.5 mm² (Signal line)
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.6 mm ±0.05 mm (Signal line)
Thickness, insulationapprox. 0.3 mm (Core insulation)
approx. 0.7 mm (Outer cable sheath)
approx. 0.45 mm (Inner sheath)
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
Length of twist, overall twist108.8 mm
ShieldingBraided copper wires
Optical shield covering85 %
External sheath, colorblack-gray RAL 7021
External cable diameter D6.8 mm ±0.2 mm
Smallest bending radius, fixed installation34 mm
Smallest bending radius, movable installation68 mm
Number of bending cycles1000000
Bending radius68 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight74 kg/km
Outer sheath, materialPE-X
Material, inner sheathPE-X
Material conductor insulationPE-X
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistance≤ 39 Ω/km (at 20 °C)
Cable capacity≤ 100 nF/km (Conductor-conductor, asymmetrical/touching)
≤ 85 nF/km (Conductor-conductor, symmetrical/star quad)
≤ 150 nF/km (Wire/shield)
Conductor inductance0.64 mH/km (at 1 kHz)
0.46 mH/km (at 10 MHz)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC
Special propertiesIrradiated
Flame resistanceaccording to DIN 60332-1-2
according to DIN EN 50266-2-5
Halogen-freein accordance with DIN VDE 0472 part 815
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceUV resistant according to DIN VDE 0276-605
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1410679 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Cable length (EF000536) 100 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) Yes
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -15 °C
Rated voltage (EF000228) 48 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
