View larger
Images are for illustrative purposes only. Please refer to data sheet for details

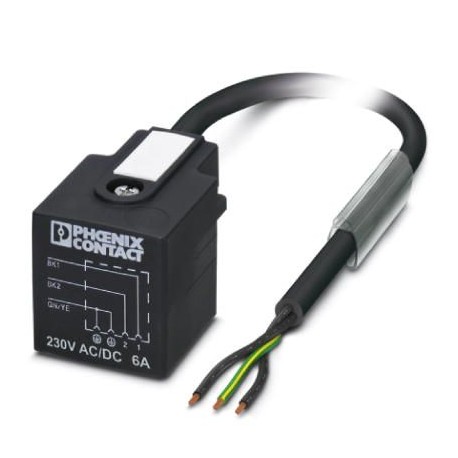

SAC-3P- 2,0-116/A 1411615 PHOENIX CONTACT Sensor/actuator cable
SAC-3P- 2,0-116/A
1411615
PHOENIX CONTACT
50 Pcs.
Sensor/actuator cable
Sensor/actuator cable, 3-pole, PUR/PVC, black RAL 9005, free cable end, to Valve connector A, cable length: 2 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1411615 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356935630 |
| Weight per Piece (excluding packing) | 124.620 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
General
| Rated current at 40°C | 6 A |
|---|---|
| Rated voltage | 230 V |
| 24 V DC | |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Standards/regulations | Valve connector EN 175301-803 |
| Status display | No |
| Protective circuit/component | unwired |
| Overvoltage category | III |
| Degree of pollution | 3 |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Valve plug contact material | CuSn |
| Valve plug contact surface material | Sn |
| Valve plug contact insert material | PA 6.6 |
| Material housing valve plug | TPU |
| Sealing material | TPU (Seal molded) |
Standards and Regulations
| Standard designation | Valve connector |
|---|---|
| Standards/regulations | EN 175301-803 |
| Flammability rating according to UL 94 | V0 |
Cable
| Cable type | PUR/PVC, 0.75 mm², black |
|---|---|
| Cable type (abbreviation) | 116 |
| Cable abbreviation | LiYY11Y |
| UL AWM style | 20549 |
| Conductor cross section | 3x 0.75 mm² |
| AWG signal line | 18 |
| Conductor structure signal line | 24x 0.20 mm |
| Core diameter including insulation | 1.7 mm ±0.05 mm |
| Wire colors | black 1, black 2, green/yellow |
| Overall twist | 3 wires, twisted |
| External sheath, color | black RAL 9005 |
| External cable diameter D | 5.8 mm ±0.2 mm |
| Minimum bending radius, flexible installation | 10 x D |
| Number of bending cycles | 1000000 |
| Traversing rate | 2 m/s |
| Acceleration | 2.5 m/s² |
| Outer sheath, material | PUR |
| Material, inner sheath | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 20 MΩ*km |
| Conductor resistance | 26 Ω/km (at 20 °C) |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 1200 V |
| Special properties | flexible |
| Flame resistance | DIN VDE 0482 |
| DIN EN 50265-2-1 | |
| in acc. with UL FT-2 | |
| Other resistance | Low adhesion |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
