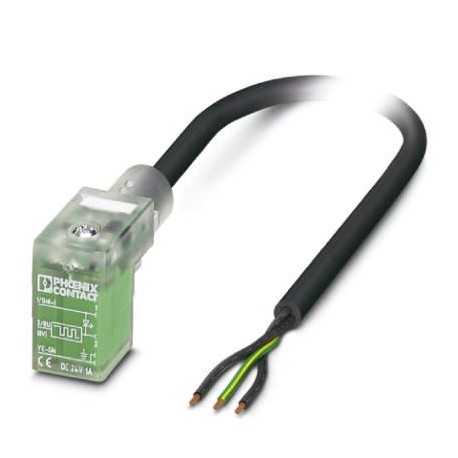

SAC-3P- 1,5-PUR/CI-1L-R-ES 1401466 PHOENIX CONTACT Sensor/actuator cable

SAC-3P- 1,5-PUR/CI-1L-R-ES

1401466

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/actuator cable, 3-pole, free cable end, to IC valve connectors (9.4mm), with 1 LED, connected with Free flow diode with holding current limiter, cable length: 1.5 m, with retaining current limiter for energy reduction

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1401466
Packing unit1 pc
Catalog pagePage 240 (C-2-2017)
GTIN4046356924672
Weight per Piece (excluding packing)57.200 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable1.5 m
Central screw valve connectorM3 x 25

Ambient conditions

Ambient temperature (operation)-25 °C ... 80 °C (valve plug)
Degree of protectionIP67

General

Rated current at 40°C1 A
Rated voltage24 V DC ±20 %
Number of positions3
Insulation resistance≥ 100 MΩ
Standards/regulations
Status display1 LED
Protective circuit/componentFreewheeling diode with holding current limiting device
Switch-over timeapprox. 200 ms (Initial operating time)
Clock frequencyapprox. 2500 Hz (Holding current limiting device)
Switching frequencymax. 5 Hz (Connected valve)

Material

Valve plug contact materialCuSn
Valve plug contact surface materialAg
Valve plug contact insert materialPA 6.6
Material housing valve plugTPU
Sealing materialTPU (Seal molded)

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y11Y-HF
UL AWM style20549
Conductor cross section3x 0.5 mm²
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.5 mm ±0.05 mm (Signal line)
Wire colorsblack 1, black 2, green/yellow
Overall twist3 wires, twisted
External sheath, colorblack-gray RAL 7021
External cable diameter D4.5 mm ±0.2 mm
Smallest bending radius, fixed installation22.5 mm
Number of bending cycles15000000
Bending radius50 mm
Traversing path0.9 m
Traversing rate5 m/s
Acceleration30 m/s²
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistancemin. 20 MΩ*km
Conductor resistance39 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 1200 V
Flame resistanceaccording to DIN VDE 0482
According to DIN EN 50265-2-1
Halogen-freein accordance with DIN VDE 0472 part 815
Other resistancelargely oil-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
