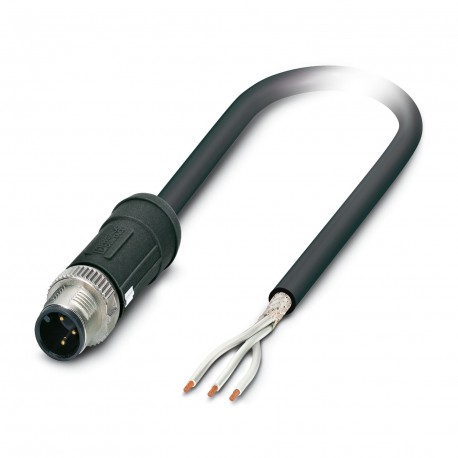

PHOENIX CONTACT SAC-3P-MS/10,0-28R SCO RAIL SAC-3P-MS/10,0-28R SCO RAIL 1407298 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P-MS/10,0-28R SCO RAIL 1407298 PHOENIX CONTACT Sensor/actuator cable

SAC-3P-MS/10,0-28R SCO RAIL

1407298

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/actuator cable, 3-pole, halogen-free PE-X, black, shielded, M12 SPEEDCON straight male connector, coding: A, to free cable end, cable length: 10 m, For railway applications Sensor/actuator cable, 3-position, PE-X halogen-free, black, shielded, Plug straight M12 SPEEDCON, coding: A, on free cable end, cable length: 10 m, For railway applications

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFurther products with variable cable type and variable cable length can be found in the accessories section
Product properties
Product typeSensor/actuator cable
ApplicationRailway applications
Number of positions3
No. of cable outlets1
Shieldedyes
CodingA
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94V0
Material of grip bodyPA 6.6
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Signaling
Status displayno
Status display presentNo
Connection data
Conductor connection
Tightening torque0.4 Nm (M12 connector)
Connector
Connection 1
TypePlug straight M12 SPEEDCON
Number of positions3
Locking typeSPEEDCON
Coding typeA
Connection 2
Typefree cable end
Cable/line
Cable length10 m
Shielded black RADOX® [28R]
Dimensional drawingkjojbcxcln.jpg
Cable weight51 kg/km
Number of positions3
Shieldedyes
Cable typeShielded black RADOX® [28R]
Conductor structure signal line19x 0.18 mm
AWG signal line20
Conductor cross section3x 0.5 mm²
Wire diameter incl. insulation1.43 mm
External cable diameter5.30 mm ±0.3 mm
Outer sheath, materialPE-X
External sheath, colorblack
Conductor materialTin-plated Cu litz wires
Material wire insulationPE-X
Single wire, colorwhite 1, white 2, white 3
Overall twist3 wires, twisted
Max. conductor resistance≤ 40.1 Ω/km
Nominal voltage, cable600 V AC (Core-ground, U0)
1000 V AC (Core-ground, U)
≤ 720 V AC (core-ground)
≤ 1200 V AC (Core-ground, Um)
≤ 900 V DC (Core-ground, V0)
≤ 1500 V DC (Line-line)
Test voltage3500 V AC (50 Hz, 5 min.)
8400 V DC (50 Hz, 5 min.)
Minimum bending radius, fixed installation3 x D
Minimum bending radius, flexible installation4 x D
Smallest bending radius, fixed installation16 mm
Smallest bending radius, movable installation22 mm
Halogen-freein accordance with EN 50267-2-1
Flame resistanceEN 60332-1-2
EN 50266
EN 50305, 9.1.2
NF C32-070, 2.1
NF C32-070, 2.2
UL 1685, 12 (FT4)
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Fume corrosivenessEN 50267-2-2
Fume toxicityBS 6853 B.1
EN 50305, 9.2
Concentration of fumesBS 6853 D.8.7
EN 61034-2
UL 1685, 12 (FT4)
Resistance to oilaccording to IRM 902, 72 h at 100 °C
Fire protection in rail vehiclesBS 6853 (Category Ia, Ib, II)
GM/RT 2130 (Category Ia, Ib, II)
EN 45545 (Risk level HL1 - HL3)
DIN 5510 (Fire protection level 1, 2, 3, 4)
NF F16-101 (Category A1, A2, B)
NF F16-101 (Class C/F0)
NFPA 130
UNI CEI 11170 (Risk level LR1 - LR4)
Other resistanceResistance to fuels (according to IRM 903, 168 h at 70 °C)
Ambient temperature (operation)-50 °C ... 120 °C (cable, fixed installation)
-25 °C ... 90 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
Ambient temperature (operation)-40 °C ... 85 °C (Plug / socket)
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
Standard designationShock, vibration
Standards/specificationsEN 50155

ETIM for 1407298 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 3
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Black
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -50 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
