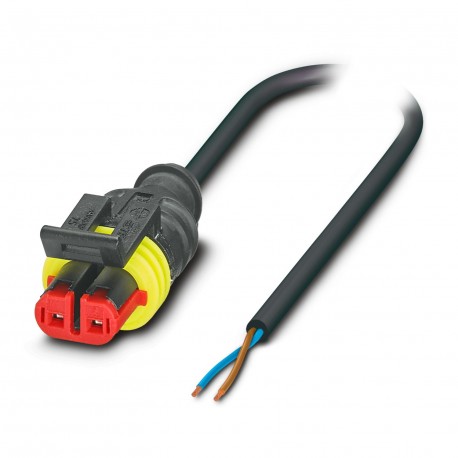

PHOENIX CONTACT SAC-2P-10,0-PUR/SUSFS SAC-2P-10,0-PUR/SUSFS 1410751 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-2P-10,0-PUR/SUSFS 1410751 PHOENIX CONTACT Sensor/actuator cable

SAC-2P-10,0-PUR/SUSFS

1410751

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/actuator cable, 2-pole halogen-free, free cable end, to Straight female Superseal, coding: A Clip lock, cable length: 10 m Sensor/actuator cable, 2-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight Superseal Clip locking, coding: A, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
ApplicationMobile hydraulics
Number of positions2
No. of cable outlets1
Shieldedno
CodingA
Data management status
Article revision01
Material specifications
Flammability rating according to UL 94HB
Seal materialSilicon
Material of grip bodyTPU
Contact materialPhCuSn
Contact surface materialnickel-plated
Contact carrier materialPA 6.6
Material for screw connectionnot available
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN24 V AC
24 V DC
Nominal current IN8 A
Signaling
Status displayno
Status display presentNo
Connector
Connection 1
Typefree cable end
Connection 2
TypeSocket straight Superseal Clip locking
Number of positions2
Locking typeClip locking
Coding typeA
Cable/line
Cable length10 m
PUR halogen-free black [PUR]
Dimensional drawingrpipcecroi.jpg
Cable weight33 kg/km
UL AWM Style20549 / 10493 (80°C/300 V)
Number of positions2
Shieldedno
Cable typePUR halogen-free black [PUR]
Conductor structure signal line42x 0.15 mm
AWG signal line18
Conductor cross section2x 0.75 mm² (Signal line)
Wire diameter incl. insulation1.69 mm ±0.05 mm (Signal line)
External cable diameter4.80 mm ±0.15 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, blue
Thickness, insulation≥ 0.21 mm
Thickness, outer sheath≥ 0.38 mm
Overall twist2 wires, twisted
Max. conductor resistance≤ 26 Ω/km (at 20 °C)
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage≥ 3000 V AC (Spark test)
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation24 mm
Smallest bending radius, movable installation48 mm
Dynamic load capacity (bending)Max. bending cycles: 4000000, Bending radius: 48 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
according to DIN EN 60332-2-2
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
according to UL 758, 168 h at 60 °C
Other resistancehydrolysis and microbe resistant
partly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
Low adhesion
abrasion-resistant
Special propertiesflexible
Flexible cable conduit capable
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP67
IP69K
Ambient temperature (operation)-20 °C ... 85 °C (Superseal)

ETIM for 1410751 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 2
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 24 V
Degree of protection (IP) (EF005474) IP67

Product Datasheet
