SACB-8/ 8-M23 180 1692776 PHOENIX CONTACT Sensor/actuator box

SACB-8/ 8-M23 180

1692776

PHOENIX CONTACT

1 Pcs.

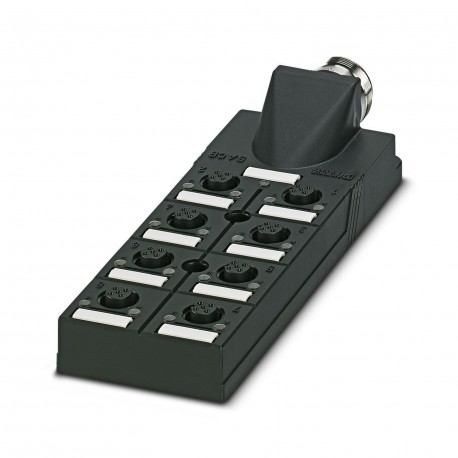

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: M12 female connector Plastic, number of plug-in stations: 8, number of poles: 4, coding: A - standard, occupation of plug-in stations: single, status indication: No, Universal; Main cable connection: M23 180° plug-in connection, shielding: no Distributor box, application: Standard, connection method: M12 socket Plastic, number of slots: 8, number of positions: 4, coding: A, slot assignment: single, status display: No, Universal; master cable connection: M23 plug connection 180°, shielding: no

Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1692776
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 114 (PC-2009)
GTIN4017918177843
Weight per Piece (excluding packing)144.000 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage120 V
Max. operating voltage Umax135 V
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current12 A
Number of positions4
Number of slots8
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12 socket

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-20 °C ... 75 °C

Master cable data/connection data

Connection methodM23 plug connection
Tightening torque slot sensor/actuator cable0.4 Nm

Insulation material

Housing materialPA
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of threaded sleevePA
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 1
2 / 4 (A) = 2
3 / 4 (A) = 3
4 / 4 (A) = 4
5 / 4 (A) = 5
6 / 4 (A) = 6
7 / 4 (A) = 7
8 / 4 (A) = 8
1-4 / 1 (+ 120 V) = 11
1-4 / 3 (0 V) = 9+10
1-4 / 5 (PE) = 12

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet
